Fastening front brake caliper

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

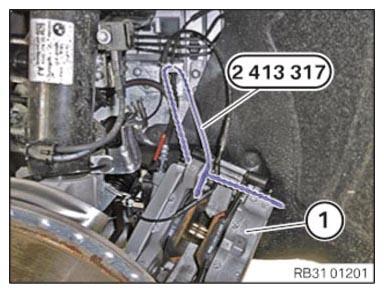

Release the special tool 2 413 317 from the brake caliper (1) and remove it.
The brake caliper (1) must not hang on the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.

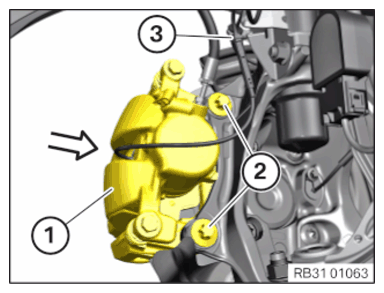

Position the brake caliper (1) in arrow direction on the swivel bearing.
Replace screws (2).
Parts: Screws

Tighten the screws (2).

TIGHTENING TORQUES SPECIFICATION

Brake caliper/brake anchor plate at front swivel bearing
M12 Replace screw.	Tightening torque	130 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only perform the operation on the left side.

Fasten the cable of the brake pad wear sensor on the holder (3).
