Tightening the screw connection of the wishbone on the front subframe

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the normal position.

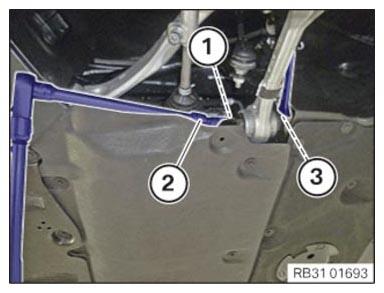

Slacken the screw (1) with the standard tool (2) by a turn and tighten it. In doing so, counter support at the nut (3).

TIGHTENING TORQUES SPECIFICATION

Wishbone to front axle support
M12 Replace screw and nut. Tighten in normal position! Tightening via screw.	Tightening torque	68 Nm
	Angle of rotation	180°

Courtesy of BMW OF NORTH AMERICA, INC.
