Releasing the front brake caliper
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

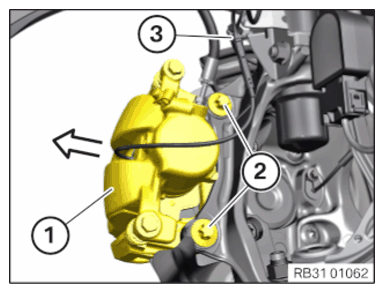

- Release the cable of the brake pad wear sensor from the holder (3).
- Loosen screws (2).
- Remove the brake caliper (1) in the arrow direction.
Do not suspend the brake caliper (1) from the brake hose.

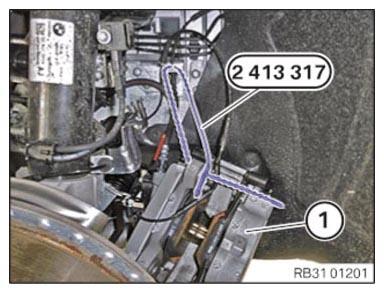

- Tie up the brake caliper (1) with the special tool 2 413 317 .
