Installing the swivel bearing

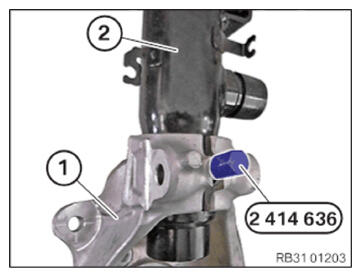

• Spread the swivel bearing (1) with the special tool 2 414 636  .
• Align the gap on the swivel bearing (1)  correctly to the positioning pin on the spring strut (2)  .
• Slide the swivel bearing (1)  in the arrow direction onto the spring strut (2)  all the way to the stop.
• Remove the special tool 2 414 636  .

  Courtesy of BMW OF NORTH AMERICA, INC.

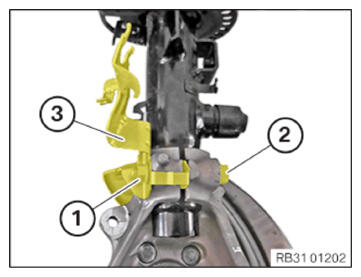

• Position holder (3)  on the swivel bearing.
• Replace screw (2)  and nut (1)  .

  Parts:  Screw, nut

• Insert screw (2)  and guide on the nut (1)  .
• Tighten down screw (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING BRAKE GUARD PLATE, FRONT .
• Refer to ATTACHING THE WISHBONE ON THE SWIVEL BEARING .
• Refer to FASTENING THE WISHBONE ON THE FRONT AXLE SUPPORT .
• Refer to SECURING TENSION STRUT ON SWIVEL BEARING .
• Refer to SECURING THE TIE ROD ON THE SWIVEL BEARING .
• Refer to PARTIALLY INSTALLING THE FRONT WHEEL SPEED SENSOR .
• Refer to INSTALLING FRONT BRAKE DISC .
• Refer to FASTENING FRONT BRAKE CALIPER .
• Refer to ATTACHING FRONT BRAKE HOSE .
• Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
• Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
• Refer to MEASURING THE RIDE HEIGHT OF THE FRONT AXLE AND ADJUSTING THE NORMAL POSITION .
• Refer to TIGHTENING THE SCREW CONNECTION OF THE WISHBONE ON THE FRONT SUBFRAME .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
• Refer to PERFORM CHASSIS ALIGNMENT CHECK .
