Partially installing the front wheel speed sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

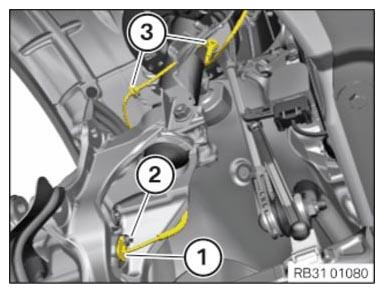

- Position the wheel speed sensor on the spring strut.
- Attach the cable of the wheel speed sensors on the brackets (3).
- Position the wheel speed sensor (1) on the swivel bearing.
- Replace the screw (2).
Parts: Screw
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Wheel RPM sensor to swivel bearing | ||
| M6 Replace screw. |
Tightening torque | 12 Nm |
