Securing tension strut on swivel bearing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

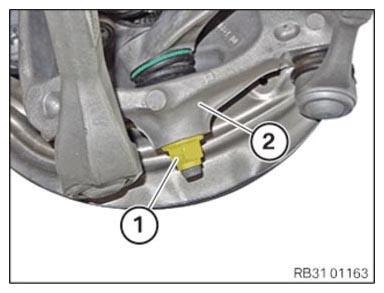

Position the tension strut on the swivel bearing (2).
Replace nut (1).
Parts: Nut
Tighten nut (1).
NOTE: Counter-hold at the Torx socket.

TIGHTENING TORQUES SPECIFICATION

Tension strut to swivel bearing
M14 Replace nut.	tightening torque	175 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
