Installing the oil-level sensor

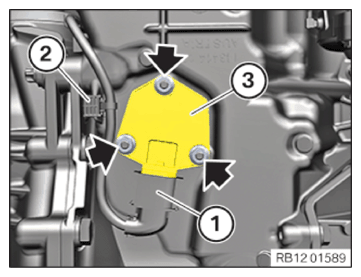

• Insert and install the oil-level sensor (3)  .
• Tighten the nuts (arrows).
  TIGHTENING TORQUES SPECIFICATION



  Oil level sensor to oil sump
  M6 hexagon nut	Joining torque	2 Nm
  	Tightening torque	8.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1)  and lock.

  The connector (1)  must engage audibly.

• Secure clamps (2)  .

Follow-up work

• Refer to INSTALLING THE ACOUSTIC COVER FOR THE OIL SUMP .
• Refer to RAISING THE FRONT SUBFRAME .
• Refer to PARTIALLY INSTALLING THE AIR DUCT FOR THE BRAKE ON THE LEFT AND RIGHT .
• Refer to ATTACHING THE ANTI-ROLL BAR LINK ON THE ANTI-ROLL BAR AT LEFT AND RIGHT .
• Refer to ATTACHING THE LINE CONNECTION TO THE RIDE HEIGHT SENSOR .
• Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
• Refer to SECURING THE STEERING SHAFT AT THE BOTTOM ON THE STEERING GEAR .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE LOWER WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
• Refer to TAKING ENGINE OUT OF INSTALLATION ORIENTATION .
• Refer to INSTALLING FUEL DELIVERY LINE .
• Refer to INSTALLING ALL IGNITION COILS .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING THE SIDE PANEL SEAL .
• Refer to INSTALLING THE LATERAL HOOD SEALS .
• Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to REMOVING THE OIL FILLER CAP .
• Refer to TOPPING UP THE MOTOR OIL .
• Refer to INSTALLING THE OIL FILLER CAP .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
• Refer to CHECKING ENGINE OIL LEVEL .
