Take engine out of installation orientation

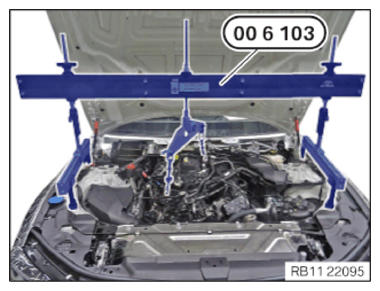

• Lower the engine by turning the spindle 2 361 506 (00 6 103) until the engine is completely in contact  with the engine mounts.

  Courtesy of BMW OF NORTH AMERICA, INC.

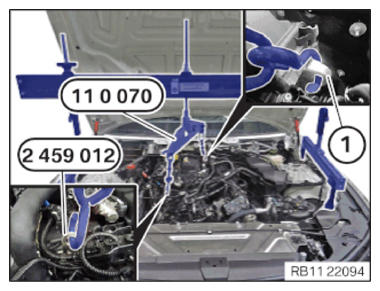

• Feed out the special tool 0 490 579 (11 0 070)  at the special tool 2 459 012 and set aside.
• Feed out the special tool 0 490 579 (11 0 070)  at the engine mounting bracket (1) at the rear and set aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Conduct the following operation with the assistance of a second person.

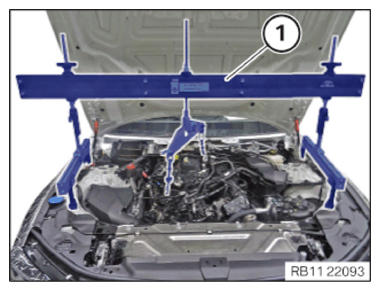

• Remove the engine bridge (1) with the help from another person.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (1) of the right engine mount from the top with a standard tool.
  TIGHTENING TORQUE SPECIFICATION



  Engine mount to engine support bracket
  M12	tightening torque	100 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lay out all special tools and standard tools.

  Number	Description
  1	Standard torque wrench
  2	Extension 11 9 150
  3	External Torx socket E14

  Courtesy of BMW OF NORTH AMERICA, INC.

• Assemble all special tools and standard tools as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (1) of the left engine mount from the bottom.
  TIGHTENING TORQUE SPECIFICATION



  Engine mount to engine support bracket
  M12	tightening torque	100 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen the screws (1) from the special tool  2 459 012  .
• Guide out and remove the special tool 2 459012  on the cylinder head.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FUEL DELIVERY LINE .
• Refer to INSTALLING ALL IGNITION COILS .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING THE SIDE PANEL SEAL .
• Refer to INSTALLING THE LATERAL HOOD SEALS .
• Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
