Install the clutch operator
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

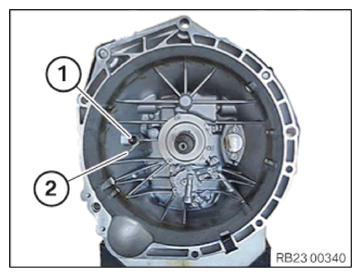

- Check the wire spring (2) and ball pin (1) for damage, replace if necessary.
- Apply grease to the ball pin (1) .

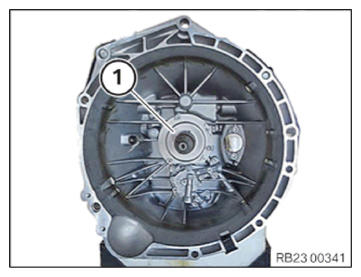

- Clean the guide tube (1) .
NOTE:
TECHNICAL INFORMATION
Do not grease the guide tube. If guide tube is greased, the release bearing can stick on the guide tube.
Do not grease the guide tube. If guide tube is greased, the release bearing can stick on the guide tube.
- Push the clutch operator (1) in the direction of the arrow onto the output shaft.
- Clamp the clutch operator (1) in the direction of the arrow behind the wire spring (2) .
Follow-up work
- Refer to INSTALLING THE MANUAL TRANSMISSION (GS6L55TZ) .
- Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
- Refer to INSTALLING FRONT HEAT SHIELD .
- Refer to INSTALLING THE REAR HEAT SHIELD .
- Refer to INSTALLING THE LEFT THRUST FIELD .
- Refer to INSTALLING TANK COVER .
- Refer to INSTALLING TRANSMISSION CROSS MEMBER .
- Refer to INSTALLING THE INTERMEDIATE PIPE .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to INSTALLING THE OXYGEN SENSOR MONITOR FOR CYLINDERS 4 TO 6 .
- Refer to PARTIALLY INSTALLING THE COOLANT EXPANSION TANK OF THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to CHECKING/ADDING TO THE OIL LEVEL IN THE MANUAL TRANSMISSION (GS6L55TZ) .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
