Refitting sump
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

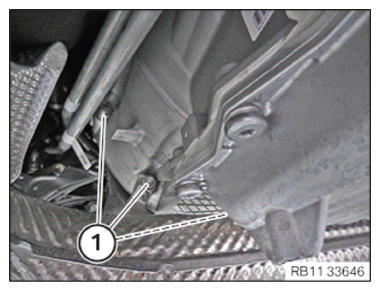

Screws of the oil sump
NOTE:
RISK OF DAMAGE
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
NOTE:
RISK OF DAMAGE
Damage to the surface .
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage .
Damage to the surface .
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage .
- Do not use any metal-cutting tools.
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
The sealing surfaces must be free of oil, grease and cleaning agents.

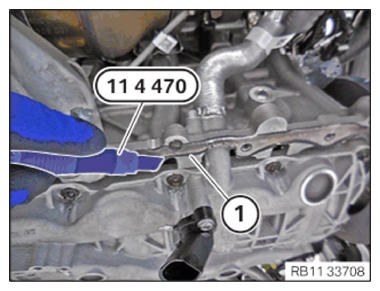

- Using the special tool 0 495 102 (11 4 470) , remove the remains of the coarse seal from the sealing face (1) of the crankcase.
- Clean the sealing surface (1) with brake cleaner.
CONSUMABLE DESCRIPTION
| Brake cleaner 2.0 | 500 ml, Spray can | 83192365214 |
| 20, Canister | 83192365215 |
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
The sealing surfaces must be free of oil, grease and cleaning agents.

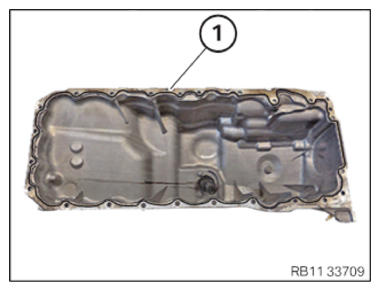

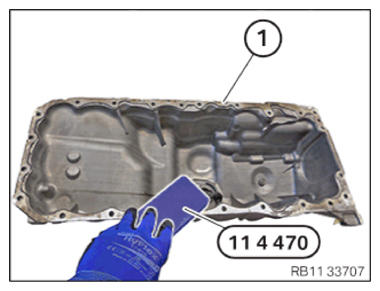

- Remove fine seal remains on the sealing surface (1) of the oil pan with the special tool 0 495 102 (11 4 470) .
- Clean the sealing surface (1) with brake cleaner.
CONSUMABLE DESCRIPTION
| Brake cleaner 2.0 | 500 ml, Spray can | 83192365214 |
| 20, Canister | 83192365215 |
- Dry the sealing surface (1) with a clean, lint-free cleaning cloth.

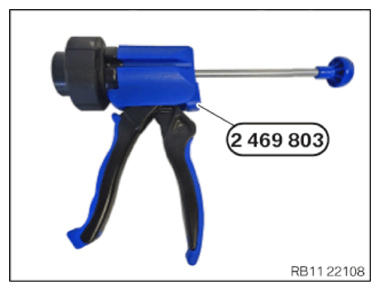

- Have the special tool 2 469 803 ready.
NOTE:
TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (APPLICABLE BMW PARTS CATALOGUE) (M4 2021-2023) .
For additional information see: OVERVIEW OF CONSUMABLES (APPLICABLE BMW PARTS CATALOGUE) (M4 2021-2023) .

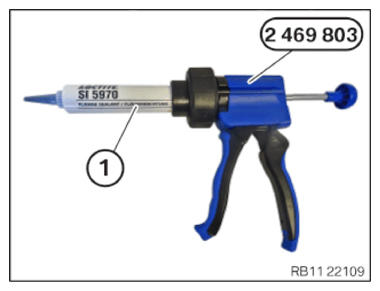

- Position the sealing compound (1) as shown on the special tool 2 469 803 .
NOTE:
TECHNICAL INFORMATION
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.
The processing time of the liquid sealing compound can be at a maximum of 10 min.
Commissioning of the assembly is not possible until 25 minutes after the processing time.
Non-observance can lead to leaks in the assembly.
- Apply sealing bead (1) with the sealing compound in the marked area along the inner edge.
SEALING COMPOUND DESCRIPTION
| Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature | 50 ml, Cartridge | 83190404517 |
TECHNICAL DATA SPECIFICATION
| Height of the sealing bead | |
|---|---|
| 2.0 mm... 2.5 mm |
- Completely encircle the oil return orifice with sealing compound.
NOTE:
TECHNICAL INFORMATION
The special tool 11 8 780 is only required when the transmission is removed.
The special tool 11 8 780 is only required when the transmission is removed.

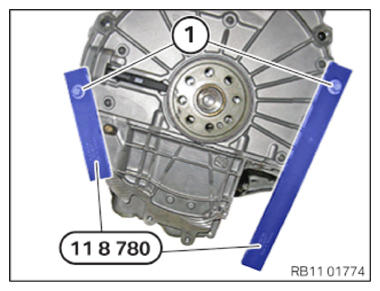

- Position the special tool 0 496 120 (11 8 780) with the transmission bolts (1) in such a way that the oil pan aligns exactly with the timing case cover.
- Replace the centering sleeves where required.

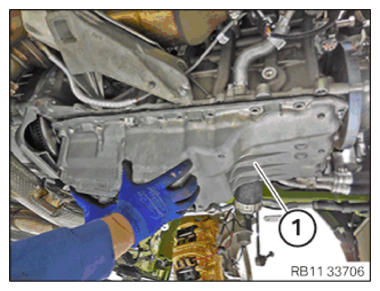

- Feed in the oil sump (1)
forwards at the top and position it.

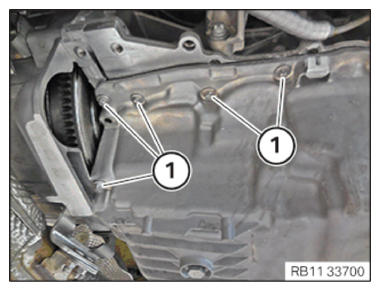

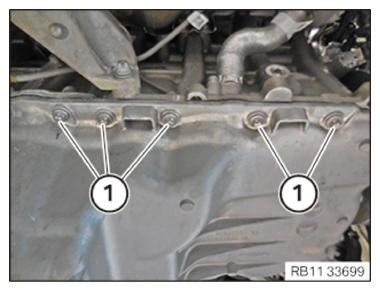

- Hand-tighten the screws (1)
.
- Hand-tighten the screws (1)
.
- Hand-tighten the screws (1)
.
- Hand-tighten the screws (1)
.
- Hand-tighten the screws (1) .
NOTE:
TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.

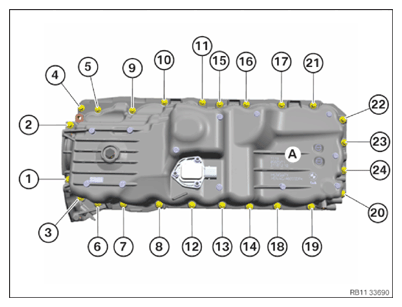

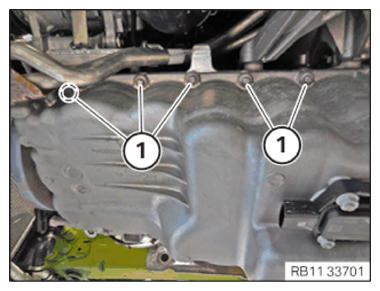

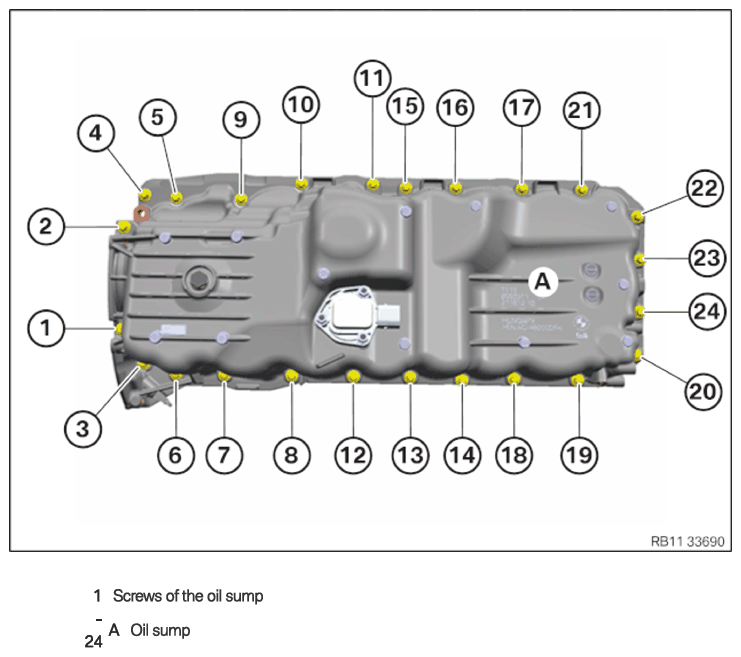

- Tighten all screws in the sequence (1) to (24) at the oil pan (A) .
TIGHTENING TORQUE SPECIFICATIONS
| Oil sump to crankcase | ||
|---|---|---|
| M8 x 30 | Tightening torque | 24 Nm |
TIGHTENING TORQUE SPECIFICATIONS
| Oil sump to crankcase | ||
|---|---|---|
| M8 x 110 | Tightening torque | 24 Nm |

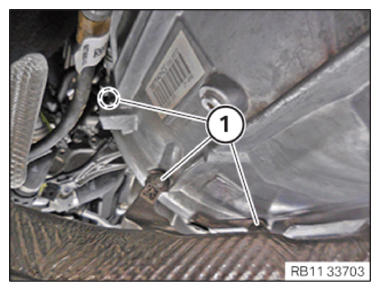

- Version with manual transmission:

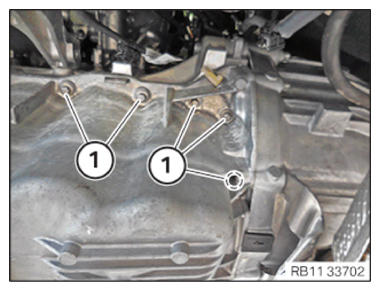

Tighten transmission screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Transmission to oil pan (manual transmission and automatic transmission) | ||
|---|---|---|
| M8 x 50 | Tightening torque | 19 Nm |
- Version with automatic transmission:
Tighten transmission screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Transmission to oil pan (manual transmission and automatic transmission) | ||
|---|---|---|
| M8 x 50 | Tightening torque | 19 Nm |

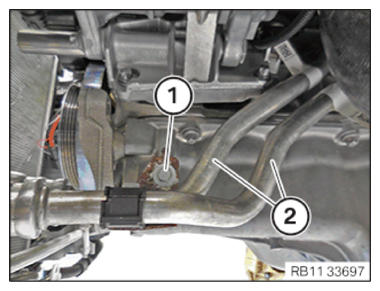

- Feed in and position the engine oil lines (2) .
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Standard screw connection M6 | ||
|---|---|---|
| M6 | Tightening torque | 8 Nm |

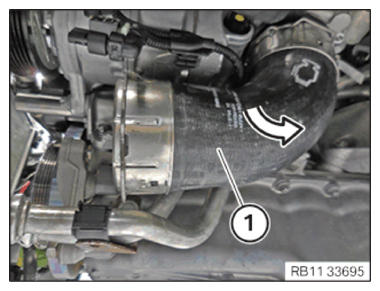

- Position the charge air duct (1)
in arrow direction
.

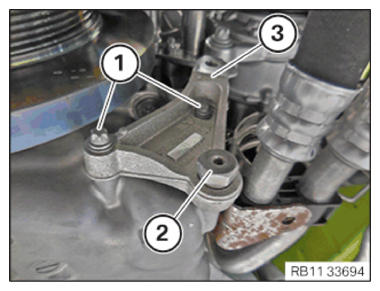

- Feed in and position holder (3) .

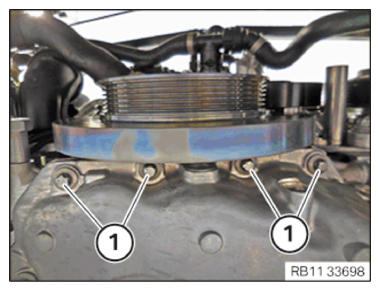

- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Idler pulley cover on oil pan | ||
|---|---|---|
| M6 | tightening torque | 10 Nm |
- Tighten the spacer (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Idler pulley cover on oil pan | ||
|---|---|---|
| M6 | tightening torque | 10 Nm |

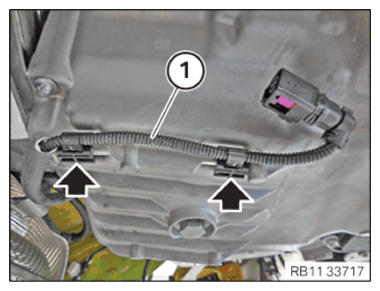

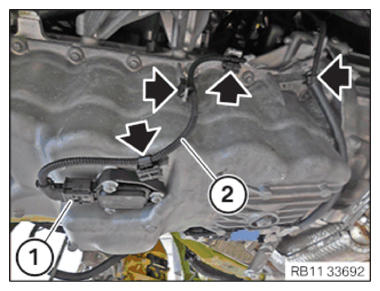

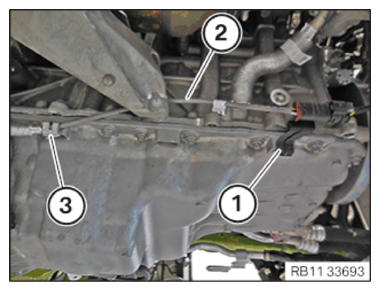

- Insert and position the wiring harness section (1) for the sensor system 1 .
- Secure the clamps (arrows).
- Insert and position the wiring harness section (2) for the sensor system 1 .
- Secure the clamps (arrows).
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Fasten the cable (2) at the clamps (3) .
- Secure the clamp (1) .
