Removing the engine from the installation position

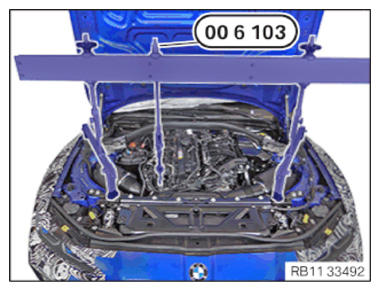

• Turn the special tool 2 361 506 (00 6 103) to lower the engine until it lies completely on the engine mounts.

  Courtesy of BMW OF NORTH AMERICA, INC.

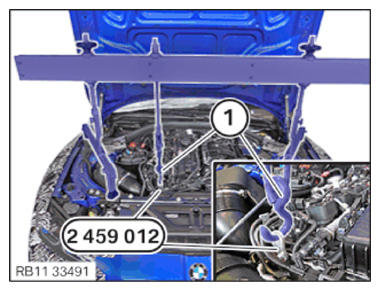

• Guide out hook (1) 0 496 733 (00 6 080) from special tool  2 459 012  and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.

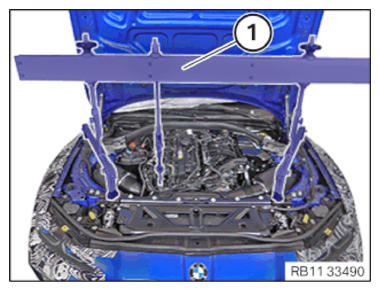

• Remove the engine bridge (1) with a support person.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Keep all the standard tools ready.

  Number	Description
  1	Standard torque wrench
  2	Swivelling extension
  3	External Torx E14

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screw (1) of the left  engine mount from the bottom using a standard tool.

Courtesy of BMW OF NORTH AMERICA, INC.

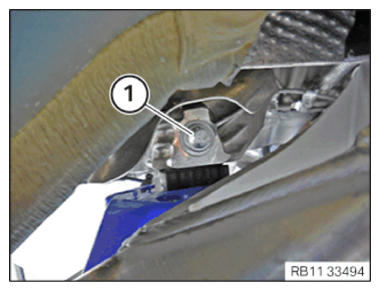

• Release screw (1) of the right  engine mount from the bottom using a standard tool.

Courtesy of BMW OF NORTH AMERICA, INC.

• Unscrew the bolts (1) of the special tool 2 459 012 .
• Feed out the special tool 2 459 012 at the cylinder head and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to INSTALLING THE FILLER CHANNEL OF THE WASHER SYSTEM .
• Refer to FASTENING THE WIRING HARNESS SECTION TO THE LEFT SHOCK TOWER .
• Refer to FASTENING THE WIRING HARNESS SECTION TO THE RIGHT SHOCK TOWER .
• Refer to INSTALLING THE COVER IN THE TOP RIGHT REAR PART OF THE ENGINE COMPARTMENT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT THE TOP REAR .
• Refer to INSTALLING THE SIDE HOOD SEAL .
• Refer to INSTALLING THE FRONT-END STRUT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE STRUT BRACE .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
