Installing the front axle assembly

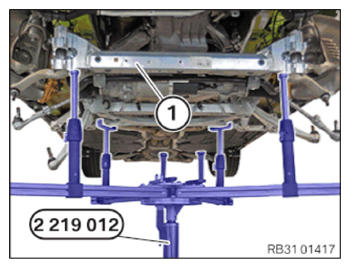

• Raise the front subframe (1) using the special tool  2 219 012  and position it on the body. Make sure that  the installed parts have free movement.

Courtesy of BMW OF NORTH AMERICA, INC.

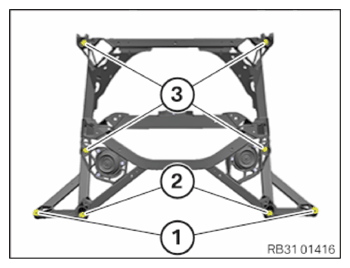

• Replace screws (1) to (3).

  Parts:  Screws

• Tighten the screws (3).
  TIGHTENING TORQUE SPECIFICATIONS



  Front subframe on front/center of body
  M12 Replace screws.	Tightening torque	108 Nm

• Tighten the screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Front axle carrier to body, rear
  M14 Replace screws.	Tightening torque	120 Nm

• Tighten the screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Front subframe to outer body at the rear
  M10 Replace screws.	Tightening torque  Angle of rotation	56 Nm 90°

  NOTE: Perform the steps on the left and right side.

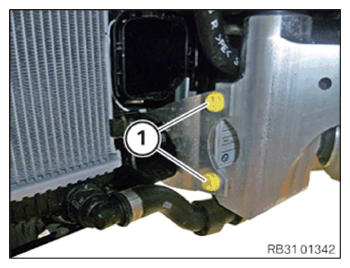

• Position the adapter on the front subframe.
• Tighten down screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Adapter, front axle support to front axle support
  M8x70	Tightening torque	19 Nm

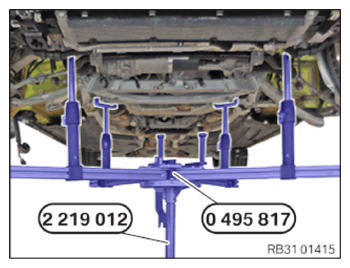

• Lower the special tool 0 495 817 (31 5 251)  with the special tool 2 219 012 and place it to the side.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ATTACHING THE REINFORCEMENT STRUT TO THE FRONT SUBFRAME .
• Refer to SECURING THE COOLANT LINE TO THE FRONT SUBFRAME .
• Refer to FASTENING THE WISHBONE, TENSION STRUT AND TIE ROD END ON THE LEFT AND RIGHT ON THE SWIVEL BEARING .
• Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT TO THE ANTI-ROLL BAR .
• Refer to ATTACHING THE LINE CONNECTION OF THE RIDE HEIGHT SENSOR .
• Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT SUBFRAME .
• Refer to SECURING THE UNIVERSAL JOINT TO THE STEERING GEAR .
• Refer to REMOVING THE ENGINE FROM THE INSTALLATION POSITION .
• Refer to INSTALLING THE FILLER CHANNEL OF THE WASHER SYSTEM .
• Refer to FASTENING THE WIRING HARNESS SECTION TO THE LEFT SHOCK TOWER .
• Refer to FASTENING THE WIRING HARNESS SECTION TO THE RIGHT SHOCK TOWER .
• Refer to INSTALLING THE COVER IN THE TOP RIGHT REAR PART OF THE ENGINE COMPARTMENT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT THE TOPPING REAR .
• Refer to INSTALLING THE SIDE HOOD SEAL .
• Refer to INSTALLING THE FRONT-END STRUT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE STRUT BRACE .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT FRONT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
• Refer to INSTALLING COVERS AT FRONT BOTTOM ON LEFT AN RIGHT SIDES .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT SPOILER .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
