Installing the right engine mount
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Install engine mount.

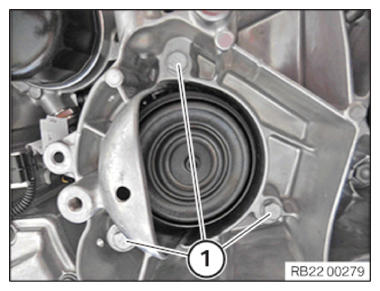

- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Engine mount to front axle support | ||
| M8 | tightening torque | 19 Nm |
Follow-up work
- Refer to RAISING FRONT AXLE SUPPORT .
- Refer to TIGHTENING THE BOLTS ON THE FRONT AXLE SUPPORT .
- Refer to SECURING THE WISHBONE ON THE TOP LEFT AND RIGHT ON THE SWIVEL BEARING .
- Refer to REMOVING THE MOBILE LIFTING TABLE .
- Refer to ATTACHING COOLANT HOSES TO FRONT SUBFRAME .
- Refer to ATTACHING THE THERMOSTAT OR TRANSMISSION OIL COOLER LINE ON THE FRONT SUBFRAME .
- Refer to INSTALLING THE UNIVERSAL JOINT .
- Refer to ATTACHING THE CABLE OF THE VERTICAL ACCELERATION SENSOR ON THE LEFT AND RIGHT .
- Refer to SECURING BRAKE HOSE, FRONT RIGHT AND LEFT .
- Refer to SECURING THE RIGHT AND LEFT OUTPUT SHAFTS ON THE WHEEL BEARING .
- Refer to FASTENING THE SPRING STRUT HOLDER ON THE LEFT AND RIGHT TO THE WISHBONE BELOW .
- Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT TO THE ANTI-ROLL BAR .
- Refer to US VERSION ONLY: INSTALLING HOLDER ON LEFT AND RIGHT BELOW THE RADIATOR .
- Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
- Refer to INSTALLING THE REINFORCEMENT STRUT ON THE RIGHT ENGINE MOUNT .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to REMOVING ENGINE BRIDGE .
- Refer to INSTALLING CLEAN AIR PIPE OF CYLINDER BANK 1 .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to INSTALLING THE RETAINING BRIDGE IN AN EQUIPMENT SPECIFICATION WITH A GASOLINE PARTICULATE FILTER .
- Installing conduit on bank 2
- Clip the wiring harness (2) into the clamps (1).
- Installing cable duct at cylinder bank 1.
- Position the conduit (2).
- Tighten the screws (1).
TIGHTENING TORQUESCable duct M6x16 screw Tightening torque 10Nm - Refer to INSTALLING THE EXPANSION TANK FOR THE CHARGE AIR COOLER .
- Refer to INSTALLING COOLANT EXPANSION TANK .
- Refer to INSTALLING HOLDER OF THE DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
- Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 5 TO 8 .
- Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 1 TO 4 .
- Refer to INSTALLING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
