Install left and right brake ventilation duct
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the right and left side.

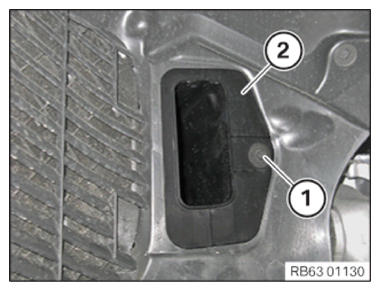

Install the brake ventilation duct
- Guide the brake ventilation duct (2)
into the wheel arch cover.
- Tighten down screw (1)
.
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) |
| Thermoplastic hexagon screw |
Tightening torque |
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
