US version only: Installing holder on left and right below the radiator

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the right and left side.

NOTE: Description is for left component only. Procedure on the right side is identical.

Loosen screw (2) from the deformation element (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

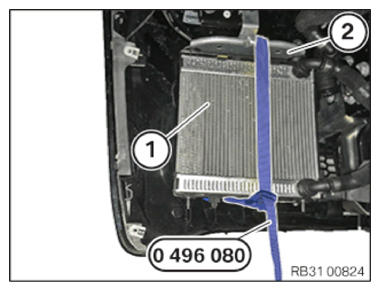

Release and remove tensioning strap 0 496 080 (33 5 206) .
Correctly position external radiator (1) at the top holder (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

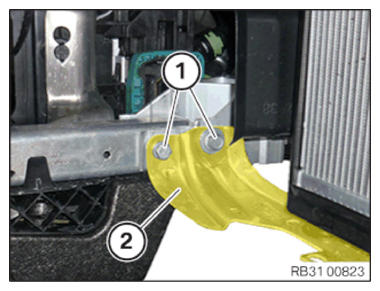

Correctly position bottom holder (2) on the external radiator.
Tighten the screws (1) .

TIGHTENING TORQUES SPECIFICATION

Holder for the external radiator on front axle support
screw	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the front section of the front wheel arch cover

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Guide in the front section (1) of the front wheel arch cover.
Tighten screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Wheel arch cover
screw	Tightening torque	3 Nm
Plastic nut	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
