Fastening the spring strut holder on the left and right to the wishbone below
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the right and left side.
Fasten the spring strut holder on the bottom wishbone
NOTE:
TECHNICAL INFORMATION
Keep the connection of the spring strut holder to the spring strut clean and free from oil and grease.
Keep the connection of the spring strut holder to the spring strut clean and free from oil and grease.
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

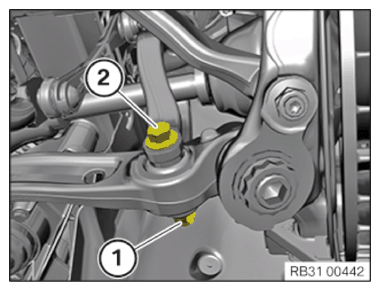

- Position spring strut holder on wishbone.
- Replace screw (2)
and nut (1)
.
Parts: Bolt and nut
- Install the bolt (2) .
- Tighten the nut (1) in the NORMAL POSITION .
TIGHTENING TORQUES SPECIFICATION
| Bottom wishbone on spring strut holder | ||
| M14 Replace screw and nut. Tighten screw connection in normal position! |
Joining torque | 165 Nm |
| Angle of rotation | 90° | |
