Installing the support for dashboard

• Carefully install the support for the dashboard in the vehicle.
• Carefully feed in the support for the dashboard.

  If necessary, connect and lock any associated connectors.

• Tighten nuts (1).

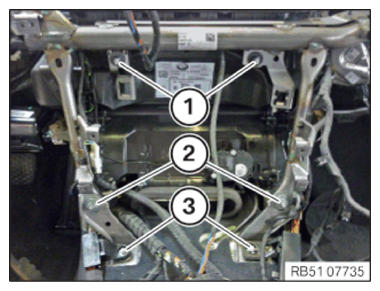

• Mount the left and right angle brackets.

  Tighten nuts (2).

  TIGHTENING TORQUE SPECIFICATION



  Support for dashboard
  hexagon nut M8	tightening torque	21 Nm
  Hexagon screw	tightening torque	21 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the nuts (3) and install the cable brackets.
  TIGHTENING TORQUE SPECIFICATION



  Support for dashboard
  hexagon nut M8	tightening torque	21 Nm
  Hexagon screw	tightening torque	21 Nm

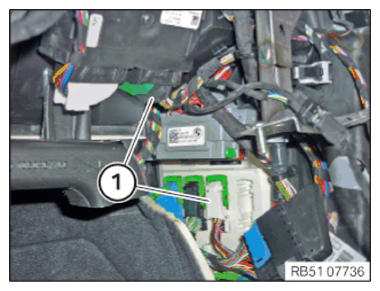

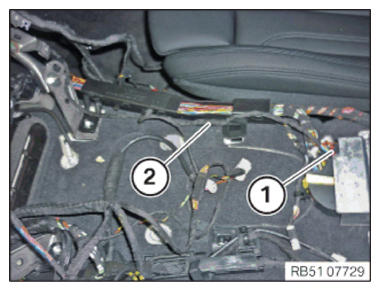

• Connect the connector (1) to the airbag control unit and lock it.
• Attach the wiring harness (2) to the holders.

  Courtesy of BMW OF NORTH AMERICA, INC.

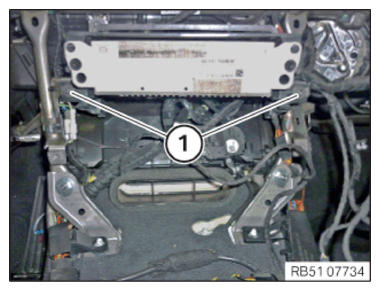

• Position the head unit (1).
• Connect and lock all connectors in marked area.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the head unit.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Head unit on holder/holder on support
  Screw	tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

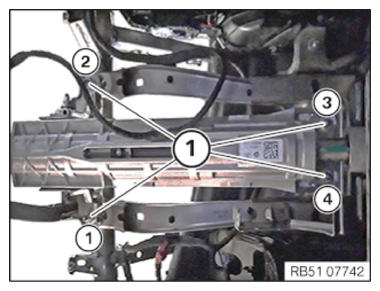

• Correctly position the steering column (2) and tighten the nuts (1) in the order (1), (2), (3) and (4).
  TIGHTENING TORQUE SPECIFICATION



  Steering column to dashboard support
  M8 Observe tightening sequence.	Tightening torque	21.4 Nm

  Fig 1: Steering Column Nuts Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.

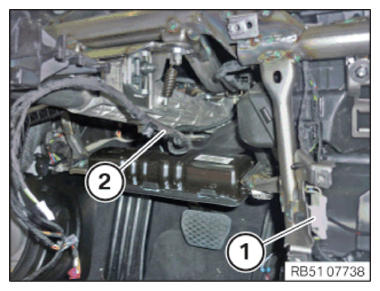

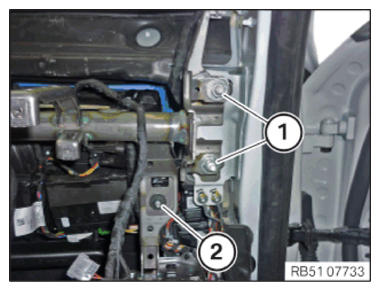

• Connect connectors (1) and lock.
• Attach the wiring harness (2) to the steering column.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the nut (1) in the footwell at left on the heating and air-conditioning unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

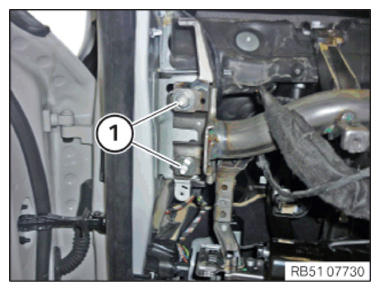

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Support for dashboard
  hexagon nut M8	tightening torque	21 Nm
  Hexagon screw	tightening torque	21 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

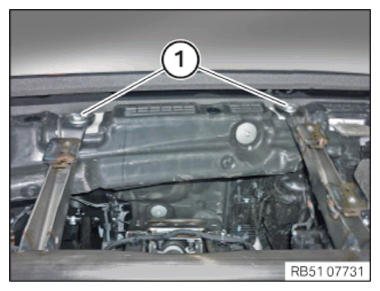

• Tighten nuts (1).
  TIGHTENING TORQUE SPECIFICATION



  Support for dashboard
  hexagon nut M8	tightening torque	21 Nm
  Hexagon screw	tightening torque	21 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

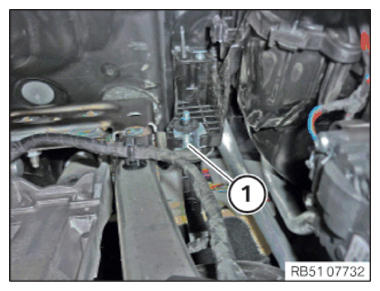

• Tighten nuts (1).
  TIGHTENING TORQUE SPECIFICATION



  Support for dashboard
  hexagon nut M8	tightening torque	21 Nm
  Hexagon screw	tightening torque	21 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

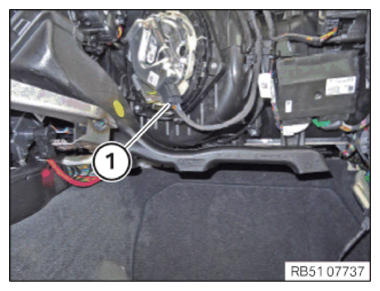

• Tighten the nut (2).
• Connect and lock the connector (1) on the blower motor.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.
• Correctly position the carpet in area of B-pillar at right.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Push the refrigerant line (1) slightly to one side and tighten the screw (2).
  TIGHTENING TORQUE SPECIFICATION



  Support for dashboard
  hexagon nut M8	tightening torque	21 Nm
  Hexagon screw	tightening torque	21 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
