Fit steering column shroud upper section

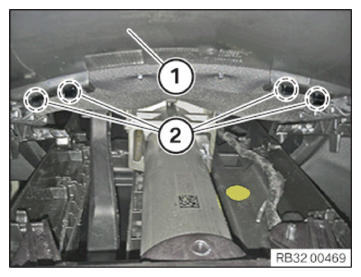

- Clip in the steering column shroud upper section (1) to the holders (2).
NOTE:
Perform the steps on the right and left side.

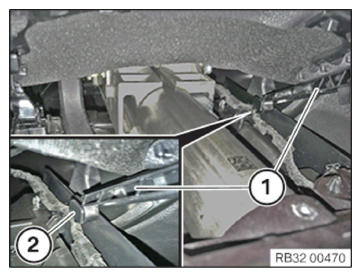

- Clip in the steering column shroud upper section (1) into the guide (2).
NOTE:
Perform the steps on the right and left side.

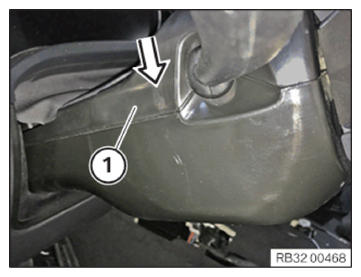

- Press the upper section of the steering column shroud (1) downwards in arrow direction.
The upper section of the steering column shroud must engage audibly and perceptibly.
