Installing the trim for the head-up display

• Check clamps (1) and detents (2) for damage, replace them if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

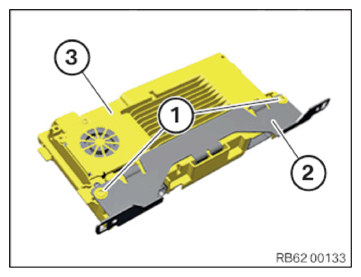

• Correctly position the trim (1) for the Head-Up

Display and click it home on the clamps (2) and the snap-in lug (3).

Courtesy of BMW OF NORTH AMERICA, INC.
