Install airbag unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
Installing the airbag unit for the sports steering wheel

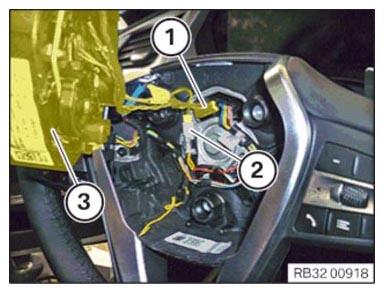

- Position airbag unit (3).
- Connect connectors (1) and (2) and lock.

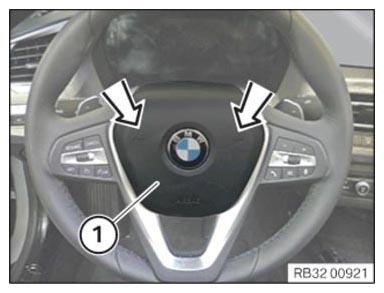

- Press the airbag unit (1) with even pressure in the direction of the arrow into the steering wheel.
The airbag unit (1) must engage audibly and perceptibly.
Installing the airbag unit for M Sport steering wheel
NOTE: TECHNICAL INFORMATION

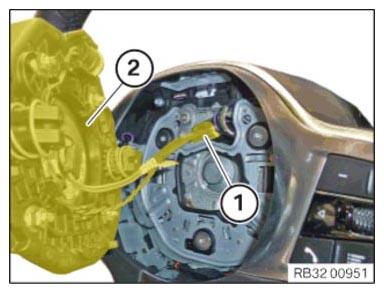

After replacing the airbag unit (M Sport steering wheel) or possibly converting the standard steering wheel and airbag unit on the M Sport steering wheel, a software update or a programming/coding via ISTA must be performed. - Connect and lock the connector (l) of the airbag unit (2).

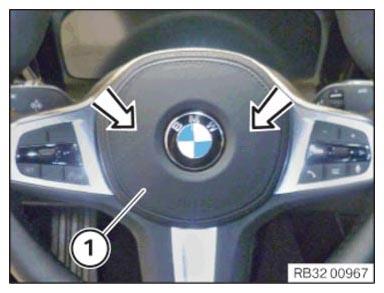

- Press the airbag unit (1) with even pressure in the arrow direction into the steering wheel.
The airbag unit (1) must engage audibly and perceptibly.
