Installing the decorative trim on the left and right of the center console

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Installing the decorative trim on the center console

NOTE: Description is for left component only. Procedure on the right side is identical.

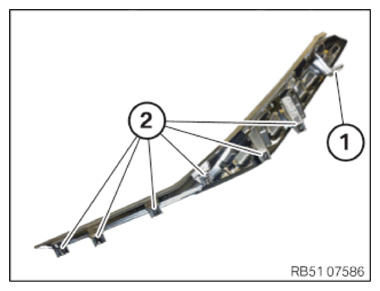

Check the guide (1) and the detents (2) for damage and replace the decorative trim if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

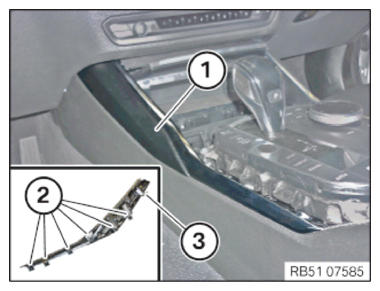

Guide the decorative trim (1) to the front into the guide (3).
Engage the decorative trim (1) on the detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.
