61 31 251 Remove and install audio operating facility
>>
Install audio control unit
Install audio control unit

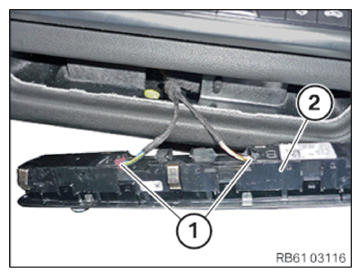

Connect the connector (1) to the audio control unit (2).
Courtesy of BMW OF NORTH AMERICA, INC.

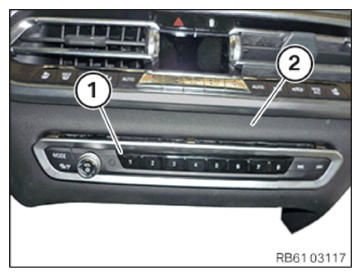

Correctly position the audio control unit (1) and install in dashboard (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
