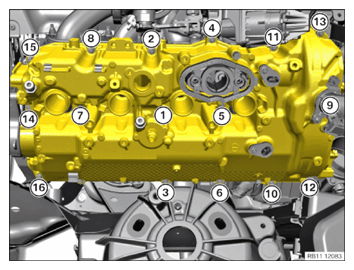

Remove left cylinder head cover.
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE LEFT AND RIGHT UNDERSHIELD (TANK COVER) .
- Refer to REMOVING THE REAR LEFT AND RIGHT TENSION STRUT .
- Refer to REMOVING THE LEFT AND RIGHT REAR DIFFUSER .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING LEFT OXYGEN CONTROL SENSOR .
- Refer to REMOVING RIGHT OXYGEN CONTROL SENSOR .
- Refer to REMOVING SUSPENSION STRUT BRACE .
- Refer to REMOVING RIGHT SUSPENSION STRUT BRACE .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING COVER FOR THE RIGHT DME CONTROL UNIT .
- Refer to REMOVING THE RIGHT UNFILTERED-AIR DUCT .
- Refer to REMOVING COVER FOR THE DME CONTROL UNIT ON LEFT .
- Refer to REMOVING THE DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
- Refer to REMOVING THE HOLDER FOR THE DME CONTROL UNIT ON THE LEFT .
- Refer to REMOVING THE RIGHT OXYGEN SENSOR MONITOR .
- Refer to REMOVING LEFT OXYGEN MONITOR SENSOR .
- Refer to REMOVING THE RIGHT-HAND ENGINE VENTILATION LINE AND THE CRANKCASE VENTILATION INTAKE PIPE .
- Refer to REMOVING THE LEFT ENGINE VENTILATION LINE .
- Refer to REMOVING UPPER HEAT SHIELD .
- Refer to RELEASING SCREW BETWEEN THE LEFT AND RIGHT HEAT SHIELD .
- Refer to REMOVING THE LEFT HEAT SHIELD .
- Refer to REMOVING RIGHT HEAT SHIELD .
- Refer to REMOVING THE CATALYTIC CONVERTER FOR CYLINDERS 5 TO 8 .
- Refer to REMOVING THE TOP LEFT COVER IN THE ENGINE COMPARTMENT , and REMOVING THE TOP RIGHT COVER IN THE ENGINE COMPARTMENT .
- Refer to REMOVING UPPER CROSS CONNECTION .
- Refer to REMOVING THE TENSION STRUT AT THE SHOCK TOWER ON THE LEFT AND RIGHT .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING THE LEFT UNFILTERED-AIR DUCT .
- Refer to REMOVING FAN COWL .
- Refer to DRAINING THE COOLANT FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to RELEASING LEFT CHARGE AIR LINE PARTIALLY .
- Refer to PARTIALLY RELEASING THE RIGHT CHARGE AIR LINE .
- Refer to REMOVING LEFT CLEAN AIR PIPE .
- Refer to REMOVING RIGHT CLEAN AIR PIPE .
- Refer to REMOVING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVING DRIVE BELT .
- Refer to REMOVING LEFT CHARGE AIR COOLER .
- Refer to REMOVING RIGHT CHARGE AIR COOLER .
- Refer to REMOVING THE IGNITION COIL FROM CYLINDER 1 .
- Refer to REMOVING THE IGNITION COILS OF CYLINDERS 5-8 .
- Refer to RELEASING THE WIRING HARNESS SECTION FROM THE LEFT HAND CYLINDER HEAD COVER .
- Refer to REMOVING THE HIGH-PRESSURE RAIL ON THE LEFT .
- Refer to REMOVING THE INJECTORS FOR CYLINDERS 5 TO 8 .
- Refer to REMOVING FUEL DELIVERY LINE .
- Refer to REMOVING LEFT HIGH PRESSURE PUMP .
- Refer to REMOVING VANOS SOLENOID ACTUATOR, EXHAUST OF CYLINDER BANK 2 .
- Refer to REMOVING VANOS SOLENOID ACTUATOR, INTAKE OF CYLINDER BANK 2 .
