Replacing The Upper Part Of The Trunk Lid

Preliminary work

• Refer to REMOVE THE WIPER ARM OF THE REAR WIPER .
• Refer to REMOVING THE REAR EMBLEM .
• Refer to REMOVE THE TOP TRIM FOR THE REAR WINDOW FRAME .
• Refer to REMOVING THE TRIM FOR THE LEFT AND RIGHT SIDE REAR WINDOW FRAMES .
• Refer to REMOVE THE POWER TAILGATE SWITCH .
• Refer to REMOVING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to REMOVE TAILGATE TRIM PANEL .
• Refer to REMOVING TAIL LIGHT ON LEFT AND RIGHT OF TRUNK LID .
• Refer to REMOVE REAR SPOILER .
• Refer to REMOVING LOWER PART OF REAR SPOILER .
• Refer to REMOVE REAR WINDOW WIPER MOTOR .
• Refer to REMOVE VIBRATION ABSORBER ON THE TRUNK LID .
• Refer to REMOVE REAR WINDOW .
• Refer to REMOVE ANTENNA AMPLIFIER .
• Refer to REMOVE THE TAILGATE BUTTON .
• Refer to REMOVE BOTH NUMBER PLATE LIGHTS .
• Refer to REMOVE STRIKER FOR TAILGATE LATCH .

Prerequisite

New part is painted.

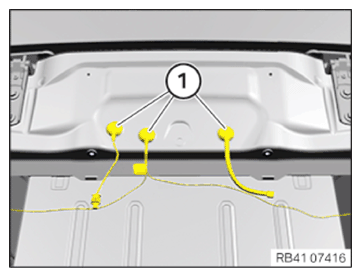

• Release the rubber grommets (1) from the trunk lid.

  Courtesy of BMW OF NORTH AMERICA, INC.

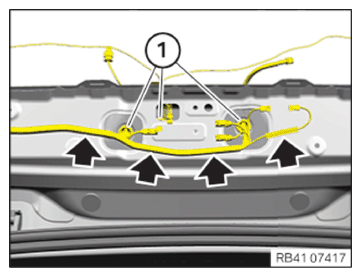

• Release the wiring harness at the marked locations (arrowed) on the trunk lid.
• Thread the wiring harness together with the rubber grommets (1) through the trunk lid.

  Courtesy of BMW OF NORTH AMERICA, INC.

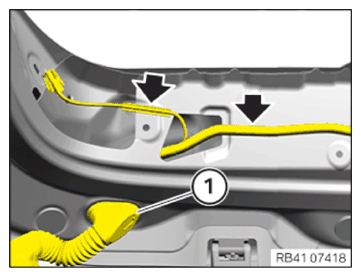

• Release the rubber grommet (1) from the trunk lid.
• Release the wiring harness at the marked locations (arrowed), unthread it from the trunk lid and put it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

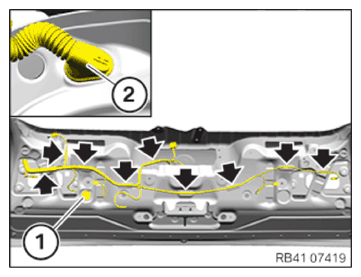

• Guide the buzzer (1) out and disconnect the respective plug connector.
• Release the wiring harness at the marked locations (arrows) from the trunk lid.
• Release the rubber grommet (2) unthread the wiring harness from the tailgate frame and put it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

  CAUTION: Shutting hood or trunk lid.
  Injury hazard!

  • Support hood/trunk lid in fully open position with the aid of a suitable device.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Damage to the spindle drive.
  If the trunk lid is not opened completely, the spindle drive may be damaged.

  • Remove and install the spindle drive only when the Trunk lid is open to the maximum extent.
  NOTE: Perform the steps on the left and right side.

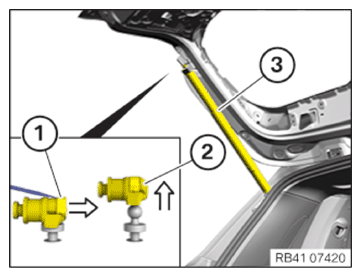

• Disassemble ball sockets.

  Observe disassembly sequence:

  1. Push clamp (1) in the direction of the arrow with a screwdriver.
  2. Lift the ball socket (2) off of the ball hub.
  3. Push back the clamp (1).
• Loosen the spindle drive (3) at the trunk lid and swing it downwards.
  NOTE: RISK OF DAMAGE
  Mechanical effects.
  Paint damage.

  • Mask those working areas at risk with yellow plastic adhesive tape.
  • Remove and install heavy or bulky components with the aid of another person/other persons.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slowly lower the trunk lid.

  Make sure that the spindle driver is not damaged.

• Loosen the screws (1) and remove the trunk lid.
  NOTE: Perform the steps on the left and right side.

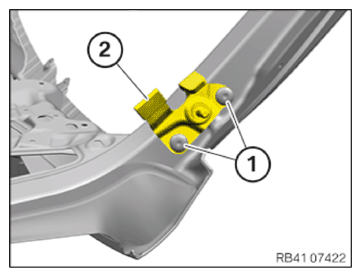

• Release the screws (1) and remove the stop pad (2).
• Reposition stop pad (2) on new part.

  Tighten down screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Stop pad to trunk lid
  M8 screw
  	tightening torque  19 Nm

  NOTE: RISK OF DAMAGE
  Mechanical effects.
  Paint damage.

  • Mask those working areas at risk with yellow plastic adhesive tape.
  • Remove and install heavy or bulky components with the aid of another person/other persons.

  Courtesy of BMW OF NORTH AMERICA, INC.

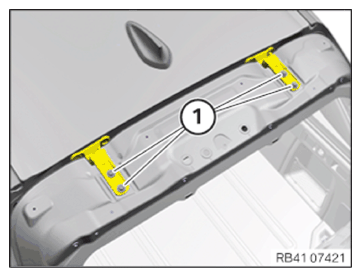

• Position the new trunk lid on the trunk lid hinges.

  Make sure that the spindle driver is not damaged.

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Upper section of tailgate on hinge
  Hexagon screw M8
  	tightening torque  19 Nm

  CAUTION: Shutting hood or trunk lid.
  Injury hazard!

  • Support hood/trunk lid in fully open position with the aid of a suitable device.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Damage to the spindle drive.
  If the trunk lid is not opened completely, the spindle drive may be damaged.

  • Remove and install the spindle drive only when the Trunk lid is open to the maximum extent.
  NOTE: Perform the steps on the left and right side.
• Open trunk lid.

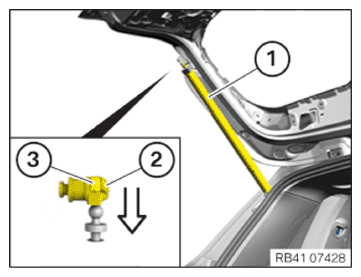

• Position the spindle drive (1) with the ball socket (2) on the ball-headed pin and drive it home by force.

  Check the clamp (3) is fitted correctly.

  NOTE: Perform the steps on the left and right side.

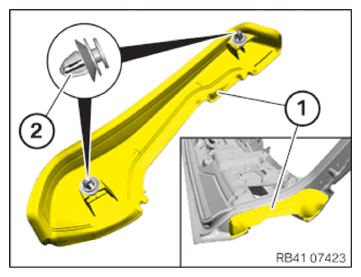

• Release the cover (1) at the clips (2) and remove it.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.

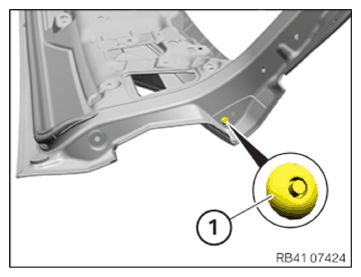

• Release both seal plugs (1) and remount them on the new trunk lid.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.
• Replace missing or damaged clips (2) and insert them into the cover (1).

  Mount the cover (1) with the clips (2) on the new trunk lid.

  Courtesy of BMW OF NORTH AMERICA, INC.

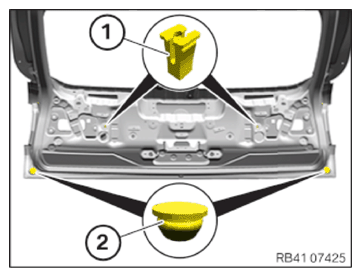

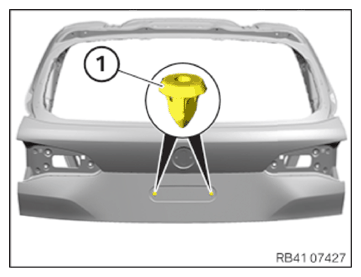

• Remount expansion nuts (1).
• Remount the seal plug (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

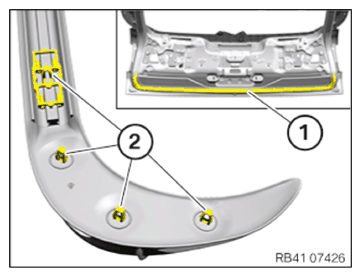

• Release the seal (1) at the clips (2) and remount it on the new part.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remount expansion nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed the wiring harness into the tailgate frame.
• Mount the rubber grommet (2).

  Check the rubber grommet for the correct installation position, (watertightness).

• Connect the plug connector of the buzzer (1) and install the buzzer.
• Fasten vehicle wiring harness at marked locations (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Thread the wiring harness into the trunk lid and secure it at the marked locations (arrowed),
• Mount the rubber grommet (1).

  Check the rubber grommet for the correct installation position, (watertightness).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Thread the wiring harness together with the rubber grommets (1) through the trunk lid.
• Fasten the wiring harness at the marked locations on the trunk lid (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the rubber grommets (1).

  Check the rubber grommet for the correct installation position, (watertightness).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL BOTH NUMBER PLATE LIGHTS .
• Refer to INSTALLING TAILGATE BUTTON .
• Refer to INSTALLING THE ANTENNA AMPLIFIER .
• Refer to INSTALL THE REAR WINDOW .
• Refer to INSTALL THE VIBRATION ABSORBER ON THE TRUNK LID .
• Refer to INSTALL REAR WINDOW WIPER MOTOR .
• Refer to FITTING THE LOWER PART OF THE REAR SPOILER .
• Refer to INSTALLING TAIL LIGHT ON TRUNK LID AT LEFT AND RIGHT .
• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to INSTALL THE POWER TAILGATE SWITCH .
• Refer to INSTALLING THE TRIM FOR THE LEFT AND RIGHT SIDE REAR WINDOW FRAME .
• Refer to INSTALL THE TRIM FOR THE TOP REAR WINDOW FRAME .
• Refer to INSTALLING THE REAR EMBLEM .
• Refer to INSTALLING THE MODEL INSCRIPTION .
• Refer to INSTALLING WIPER ARM OF THE REAR WIPER .
• Refer to ADJUSTING THE UPPER PART OF THE TRUNK LID .
• Refer to INSTALL REAR SPOILER .
