Remove vibration absorber on the trunk lid
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
Preliminary work
- Refer to REMOVING THE WIPER ARM OF THE REAR WIPER .
- Refer to REMOVE THE TOP TRIM FOR THE REAR WINDOW FRAME .
- Refer to REMOVING THE TRIM FOR THE LEFT AND RIGHT SIDE REAR WINDOW FRAMES .
- Refer to REMOVING THE POWER TAILGATE SWITCH .
- Refer to REMOVING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
- Refer to REMOVING TAILGATE TRIM PANEL .
- Refer to REMOVING REAR WINDOW WIPER MOTOR .

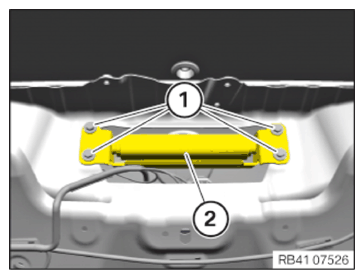

- Release the screws (1) and remove the vibration absorber on the trunk lid (2).
