Remove rear window wiper motor

Preliminary work

• Refer to REMOVE THE WIPER ARM OF THE REAR WIPER .
• Refer to REMOVE THE TOP TRIM FOR THE REAR WINDOW FRAME .
• Refer to REMOVING THE TRIM FOR THE LEFT AND RIGHT SIDE REAR WINDOW FRAMES .
• Refer to REMOVE THE POWER TAILGATE SWITCH .
• Refer to REMOVING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to REMOVING TAILGATE TRIM PANEL .

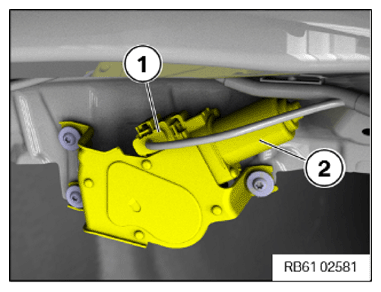

• Unlock and disconnect the connector (1) of the rear window wiper motor (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

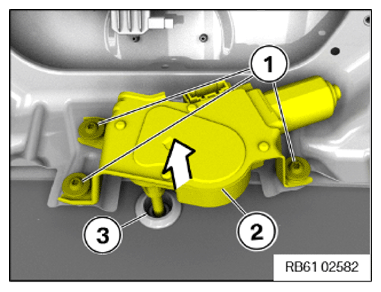

• Release the screws (1), feed out and remove the rear window wiper motor (2) from the grommet (3).

Courtesy of BMW OF NORTH AMERICA, INC.
