Installing the trim for the left and right side rear window frame

NOTE: Description is for left component only. Procedure on the right side is identical.

Install trim for the sides of the rear window frame

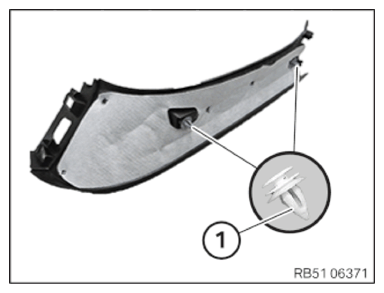

Check if clips (1) are present and check them for damage.
Defective or missing clips (1) must be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.

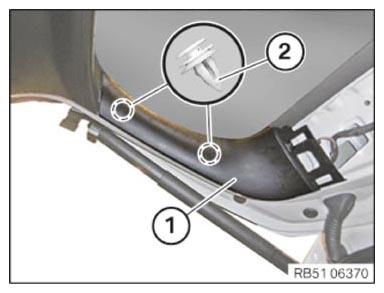

Position trim (1) for the rear window frame correctly from the side and clip it into clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.
