Install the rear window

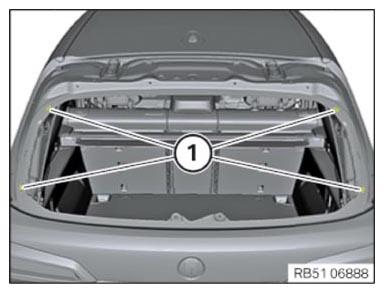

• Check the adhesive tape (Dual-Lock-Band) (1) on the body and the rear windshield.

  Replace any defective adhesive tape (Dual-Lock-Band) (1) on the body and the rear windshield.

  Courtesy of BMW OF NORTH AMERICA, INC.

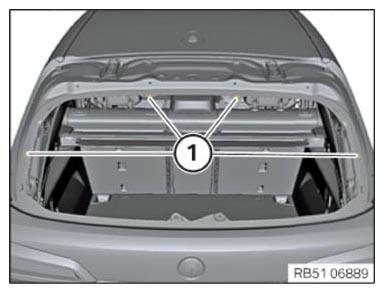

• Check the spacer buffers (1).

  Replace broken or missing spacer buffers (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Provide two glue cartridges.
• Prepare a glue cartridge with standard nozzle C.

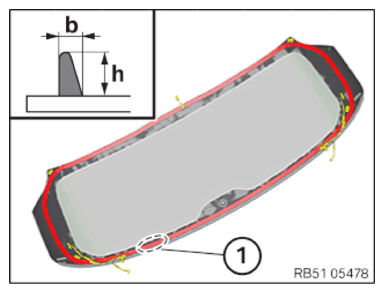

• Apply bead joint in area (1).
• Apply adhesive bead within the mark on the rear window

Courtesy of BMW OF NORTH AMERICA, INC.

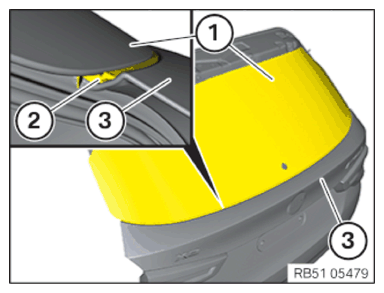

• Carefully perform the following actions on rear window (1) with suction lifters:
  • Bring it parallel to C-pillar
  • apply and press at the bottom on the seal
  • Align sides evenly
  • evenly press all around and engage at the hook and loop tape (dual-lock tape)
• Ensure that the seal (2) is evenly applied on the trunk lid (3).
• Secure rear window (1) with adhesive tap on the roof.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove adhesive tape (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten the cable at the cable brackets (3).
• Connect connectors (2) and lock.
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten the cable at the cable brackets (3).
• Connect connectors (2) and lock.
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect plug (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR WINDOW WIPER MOTOR .
• Refer to INSTALLING WIPER ARM OF THE REAR WIPER .
• Refer to FITTING THE LOWER PART OF THE REAR SPOILER .
• Refer to INSTALLING REAR SPOILER .
• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to INSTALLING THE POWER TAILGATE SWITCH .
• Refer to INSTALLING THE TRIM FOR THE LEFT AND RIGHT SIDE REAR WINDOW FRAME .
• Refer to INSTALL THE TRIM FOR THE TOP REAR WINDOW FRAME .
