Adjusting The Upper Part Of The Trunk Lid

Prerequisite

• Lower section of tailgate is adjusted.

Preliminary work

• Refer to REMOVE REAR SPOILER .
• Refer to REMOVING THE COVER ON THE STRIKER FOR THE TAILGATE LATCH .
• Refer to REMOVE STRIKER FOR TAILGATE LATCH .

Further information is available.

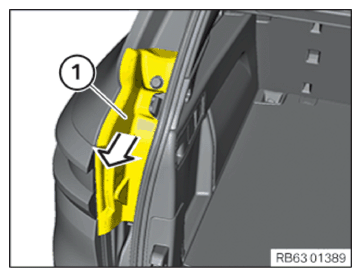

• Unclip the cover of the water channel (1) in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

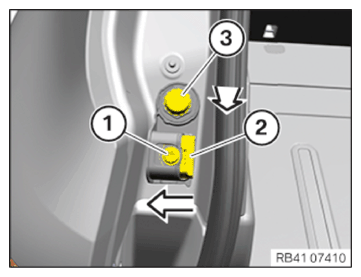

• Slacken screw (1).

  Slide the wedge (2) in arrow direction towards the outer and tighten the screw (1) hand tight.

• If applicable, turn back the stop pad (3) several rotations, (turn in)

  Courtesy of BMW OF NORTH AMERICA, INC.

• Undo screws (1) until the trunk lid can be shifted.
• Adjust trunk lid.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check

• Check the gap dimensions (arrowed) between trunk lid and adjacent components.

  Install a trunk spoiler if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Gap dimensions do not correspond to the specifications.

  Measure

  • Adjust trunk lid.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Upper section of tailgate on hinge
  Hexagon screw M8
  	tightening torque  19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Install striker for tailgate latch

  Further information is available.

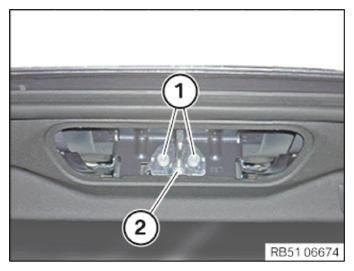

• Install the striker (2).
• Hand-tighten the bolts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Adjusting the striker for the tailgate latch

  Further information is available.

  NOTE: TECHNICAL INFORMATION
  Notes for the gap dimensions of the body form the basis of this REP and it is mandatory to observe them.
  For additional information see BODY DIMENSIONS .
• Slacken the bolts (1) until the striker (2) is barely adjustable and self-centers itself.
• Close trunk lid.
• Open trunk lid.
• Tighten the screws (1).
  NOTE: When the trunk lid is closed, the striker must not tap or scrape against the tailgate lock. Watch out for scratches!
  TIGHTENING TORQUE SPECIFICATIONS



  Striker to rear lid
  screw
  	Tightening torque  19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Close the trunk lid and check the gap dimension.

  If applicable, repeat the adjustment procedure.

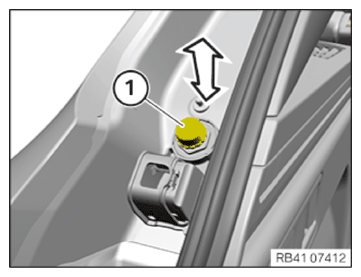

• Pre-adjust the stop pad (1) by rotating it until the trunk lid is 0.5-1.0 mm recessed from the side panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check

• Check the pre-adjustment between the trunk lid and side panel.

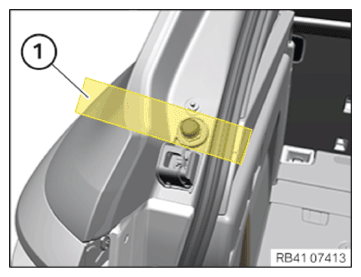

  Fold the yellow plastic adhesive tape (1) 1 x and place it on the stop pad.

  Close the trunk lid.

  The stop pad is correctly pre-adjusted if the plastic adhesive tape can be pulled out with little resistance.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The plastic adhesive tape can be pulled out with no resistance or not at all,

  Measure

  • Pre-adjust the stop pad by turning it,
• Adjust stop pad. (final adjustment)

  Unscrew the stop pad 3/4 to 1 rotation.

  Unscrew the stop pad in accordance to the ride height undershot or ride height excess and from the closing sound of the trunk lid.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check

• Check the difference in ride height between trunk lid and side panels.

  Result

  » Gap dimensions do not correspond to the specifications,

  Measure

  • Adjust stop pad,

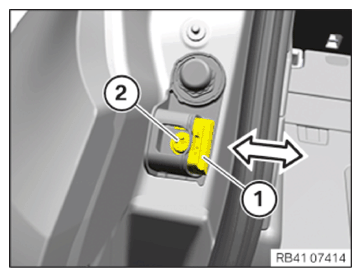

• Slacken screw (2).
• Adjust the wedge (1) by shifting it in arrow direction.

  Tighten down screw (2).

  TIGHTENING TORQUE SPECIFICATIONS



  Wedge for adjusting the trunk lid
  Screw
  	tightening torque  12 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check

• Check the setting of the wedge.

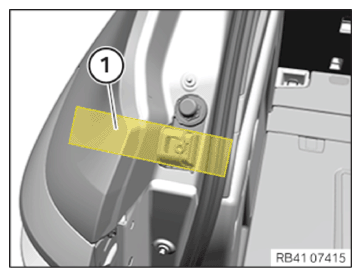

  Fold the yellow plastic adhesive tape (1) 1 x and place it on the wedge.

  Close the trunk lid.

  The wedge is correctly adjusted if the plastic adhesive tape can be pulled out in a "sucking" manner.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The plastic adhesive tape can be pulled out with no resistance or not at all.

  Measure

  • Adjust the wedge by shifting it.
• Position the cover panel of the water channel (1) and clip in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE COVER ON THE STRIKER FOR THE TAILGATE LATCH .
• Refer to INSTALL REAR SPOILER .
