Removing crankshaft

Preliminary work

• Refer to REMOVING THE ENGINE FROM THE LIFTING TABLE .
• Refer to MOUNTING THE ENGINE TO THE ENGINE SUPPORT BRACKET .
• Refer to REMOVING THE LEFT INTAKE SILENCER BRACKET .
• Refer to REMOVE RIGHT INTAKE SILENCER HOUSING .
• Refer to PARTIAL UNINSTALLATION OF THE ENGINE VENTILATION LINE OF CYLINDER BANK 1 .
• Refer to REMOVING ENGINE VENTILATION LINE OF CYLINDER BANK 1 .
• Refer to REMOVING THE OXYGEN SENSOR MONITOR FOR THE CYLINDERS 1 TO 4 .
• Refer to REMOVING THE RIGHT INTAKE SILENCER BRACKET .
• Refer to REMOVING THE LOW-TEMPERATURE COOLANT EXPANSION TANK .
• Refer to REMOVING THE CROSS OF THE TRANSMISSION WIRING HARNESS .
• Refer to REMOVING LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 1 TO 4 .
• Refer to REMOVING LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 5 TO 8 .
• Refer to REMOVING UPPER HEAT SHIELD .
• Refer to REMOVING UPPER CATALYTIC CONVERTER NEAR ENGINE FROM CYLINDER BANK 1 .
• Refer to REMOVING THE CATALYTIC CONVERTER NEAR THE ENGINE AT TOP OF CYLINDER BANK 2 .
• Refer to REMOVING THE LEFT AND RIGHT EXHAUST TURBOCHARGER .
• Refer to REMOVING FRONT HEAT SHIELD .
• Refer to REMOVING HEAT SHIELD OF THE CYLINDER HEAD COVER FOR CYLINDERS 1 TO 4 .
• Refer to REMOVING HEAT SHIELD OF CYLINDER HEAD COVER OF CYLINDERS 5 TO 8 .
• Refer to REMOVING BOTH EXHAUST MANIFOLDS .
• Refer to REMOVING HEAT SHIELD AT BOTTOM .
• Refer to REMOVING OIL FILLER NECK .
• Refer to REMOVING THE RIGHT UNFILTERED-AIR DUCT .
• Refer to REMOVING DRIVE BELT .
• Refer to REMOVING THE ALTERNATOR .
• Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
• Refer to REMOVING THE WHEEL ARCH COVER AT THE BOTTOM FRONT LEFT AND BOTTOM RIGHT .
• Refer to REMOVING LEFT AND RIGHT CHARGE AIR COOLER .
• Refer to REMOVING VANOS SOLENOID ACTUATOR, EXHAUST OF CYLINDER BANK 2 .
• Refer to REMOVING LEFT THROTTLE VALVE ASSEMBLY .
• Refer to REMOVING THE COOLANT LINE BETWEEN THE COOLANT PUMP AND HEAT EXCHANGER .
• Refer to REMOVING IGNITION COIL OF CYLINDER BANK 2 .
• Refer to REMOVING THE IGNITION COILS OF CYLINDERS 1 AND 2 .
• Refer to REMOVING RAIL FROM BANK 2 .
• Refer to RELEASING THE COOLANT LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to PARTIALLY RELEASING THE FUEL SUPPLY LINE ON THE RIGHT .
• Refer to REMOVING FUEL DELIVERY LINE .
• Refer to REMOVING THE HEAT SHIELD OF THE CRANKCASE VENTILATION OF THE CYLINDERS 5 TO 8 .
• Refer to REMOVING LEFT HIGH PRESSURE PUMP .
• Refer to REMOVING WIRING HARNESS SECTION FOR THE IGNITION SYSTEM OF CYLINDER BANK 2 .
• Refer to REMOVING LEFT CYLINDER HEAD COVER .
• Refer to REMOVE THE SEALING CAP ON THE CYLINDER HEAD OF THE CYLINDER BANK 2 .
• Refer to REMOVING THE BELT PULLEY ON THE TORSIONAL VIBRATION DAMPER .
• Refer to MOVING THE CRANKSHAFT INTO THE INSTALLATION POSITION OF CYLINDER BANK 1 .
• Refer to CHECKING THE VANOS ADJUSTER OF CYLINDER BANK 2 .
• Refer to RELAXING CHAIN TENSIONER ON BANK 2 FOR CHECKING OR SETTING TIMING .
• Refer to REMOVING HYDRAULIC CHAIN TENSIONER OF CYLINDER BANK 2 .
• Refer to PRELOADING THE TIMING CHAIN OF CYLINDER BANK 2 .
• Refer to SECURING THE ENGINE IN INSTALLATION POSITION AT CYLINDER 1 .
• Refer to INSTALLING THE SPECIAL TOOL TO SECURE THE CAMSHAFTS OF CYLINDER BANK 2 .
• Refer to REMOVING BOTH LEFT VANOS ADJUSTERS .
• Refer to REMOVING SPECIAL TOOL FOR FIXING CAMSHAFTS IN POSITION ON BANK 2 .
• Refer to REMOVING SPECIAL TOOL TO PRETENSION TIMING CHAIN ON CYLINDER BANK 2 .
• Refer to REMOVING LEFT CYLINDER HEAD .
• Refer to REMOVING RIGHT CYLINDER HEAD .
• Refer to REMOVING DRIVE BELT .
• Refer to REMOVING THE ALTERNATOR .
• Refer to REMOVING LEFT THROTTLE VALVE ASSEMBLY .
• Refer to REMOVING HIGH PRESSURE RAIL AT CYLINDER BANK 1 .
• Refer to RELEASING THE COOLANT LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to REMOVING HEAT SHIELD OF THE CRANKCASE VENTILATION FOR CYLINDERS 1 TO 4 .
• Refer to REMOVING RIGHT HIGH-PRESSURE PUMP .
• Refer to PARTIALLY RELEASING THE WIRING HARNESS SECTION FOR THE INTEGRATED POWER SUPPLY MODULE .
• Refer to REMOVING WIRING HARNESS SECTION FOR THE IGNITION SYSTEM OF CYLINDER BANK 1 .
• Refer to REMOVING RIGHT CYLINDER HEAD COVER .
• Refer to REMOVING THE SEALING CAP ON THE CYLINDER HEAD OF THE CYLINDER BANK 1 .
• Refer to REMOVING THE BELT PULLEY ON THE TORSIONAL VIBRATION DAMPER .
• Refer to MOVING THE CRANKSHAFT INTO THE INSTALLATION POSITION OF CYLINDER BANK 1 .
• Refer to CHECKING THE VANOS ADJUSTER OF CYLINDER BANK 1 .
• Refer to RELIEVING THE CHAIN TENSIONER AT CYLINDER BANK 1 FOR CHECKING OR SETTING THE VALVE TIMINGS .
• Refer to REMOVING HYDRAULIC CHAIN TENSIONER OF CYLINDER BANK 1 .
• Refer to PRELOADING THE TIMING CHAIN OF CYLINDER BANK 1 .
• Refer to SECURING THE ENGINE IN INSTALLATION POSITION AT CYLINDER 1 .
• Refer to INSTALLING THE SPECIAL TOOL TO SECURE THE CAMSHAFTS OF CYLINDER BANK 1 .
• Refer to REMOVING BOTH RIGHT VANOS ADJUSTERS .
• Refer to REMOVING THE SPECIAL TOOL TO PRETENSION THE TIMING CHAIN AT CYLINDER BANK 1 .
• Refer to RELEASING AIR CONDITIONING COMPRESSOR .
• Refer to REMOVING THE ENGINE MOUNT .
• Refer to REMOVING FRONT AXLE DIFFERENTIAL .
• Refer to RELEASING THE OIL DRAIN PLUG .
• Refer to REMOVE LOWER OIL PAN SECTION .
• Refer to REMOVING OIL PUMP .
• Refer to REMOVING UPPER OIL SUMP SECTION .
• Refer to REMOVING THE PISTON WITH CONNECTING ROD .
• Refer to REMOVING FLYWHEEL .
• Refer to REMOVING THE VIBRATION DAMPER .
• Refer to REMOVING THE COOLANT PUMP .
• Refer to REMOVING THE COOLANT LINE BETWEEN THE COOLANT PUMP AND HEAT EXCHANGER PARTIALLY .

• Remove the roller chain (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and disconnect the plug connection (1) on the coolant temperature sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screw connection 1 on the timing case cover in front

• Loosen screws in the order (10) to (12).
• Remove the carrier plate (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release the screw connection 2 on the front timing case cover

• Loosen screws in the order (9) to (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Release the screw connection 3 on the timing case cover in front

• Loosen screws in the order (1) to (2).
• Remove timing case cover.

Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the slide rail (1).

Courtesy of BMW OF NORTH AMERICA, INC.

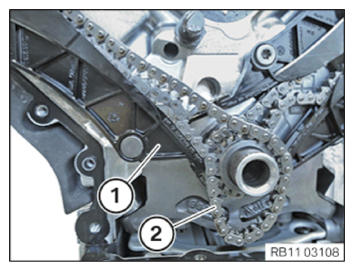

Remove the tensioning rail of the timing chain for cylinder 1-4

• Remove the tensioning rail (1) with the timing chain (2) from the crankshaft gearing.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the slide rail of the timing chain for cylinders 5 to 8

• Remove the slide rail (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the tensioning rail of the timing chain for cylinder 5-8

• Remove the tensioning rail (1) with the timing chain (2) from the crankshaft gearing.

Courtesy of BMW OF NORTH AMERICA, INC.

• Observe the arrangement of the main bearing caps and the assignment of the crankshaft bearing caps from (1) to (5).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the main bearing taper screw mounting in the marked areas.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unscrew all threaded bushing sleeves (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The operations shown only for one side must be carried out on both sides.
• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the collar screws (M8) in the sequence (10) to (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the collar screws (M11) in the sequence (10) to (1).
• Remove the main bearing cap.
  CAUTION: Component with heavy weight.
  Injury hazard!

  • Note component's center of gravity.
  • Support component using a jack.
  • Secure component against falling off the jack.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The work must be performed with vehicle care to prevent component damage.
• Remove the crankshaft with a support person (weight approx. 25 kg).
• Lift out the crankshaft and place it aside safely (secure against twisting).
