Detaching and lowering the front axle support
WARNING:
Heavy component falling down or tipping.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before lowering or removing the front axle: Securing engine to the installation position.
- For additional information see: MOVING THE ENGINE TO THE INSTALLATION POSITION .
WARNING:
Car may slip off the vehicle hoist where components are supported.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Secure the vehicle hoist against lowering and lifting.
- Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
WARNING:
Car may slip off the vehicle hoist if the weight is distributed unevenly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Ensure specific weight compensation on the vehicle.
Preliminary work
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to MOVING THE ENGINE TO THE INSTALLATION POSITION .
- Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE COVER PANEL FOR THE FRONT AXLE LEFT AND RIGHT .
- Refer to DETACHING STEERING SHAFT AT BOTTOM FROM STEERING GEAR .
- Refer to RELEASING THE EPS WIRING HARNESS FROM THE ELECTROMECHANICAL STEERING GEAR .
- Refer to DETACHING THE LINE CONNECTION OF THE RIDE HEIGHT SENSOR .
- Refer to IF INSTALLED: DISCONNECTING THE VACUUM LINE OF THE ENGINE MOUNTS .
- Refer to RELEASING THE ELECTRIC COOLANT PUMP AND COOLANT HOSES FROM THE FRONT AXLE SUPPORT .
- Refer to DETACHING THE ANTI-ROLL BAR LINK FROM THE ANTI-ROLL BAR ON THE RIGHT AND LEFT .
- Refer to PREPARING THE SPECIAL TOOL .
- Refer to SUPPORTING THE FRONT AXLE SUPPORT .
Disassemble the front axle support
WARNING:
Heavy component falling down or tipping.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before lowering or removing the front axle: Securing engine to the installation position.
- For additional information see: MOVING THE ENGINE TO THE INSTALLATION POSITION .
Partially releasing left and right crash levers
NOTE:
The following step(s) must be performed if the specified component(s) is/are installed.
NOTE:
Perform the steps on the right and left side.
- Release nut (1).
- Remove the bolt (2).
Releasing the adapter for the front axle support from the front axle support on the right and left
NOTE:
Perform the steps on the right and left side.

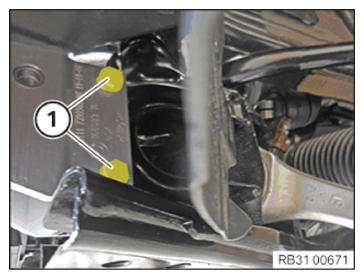

- Loosen screws (1).
- Loosen screws (1) to (3).
Lower front subframe
NOTE:
RISK OF DAMAGE
Failure to comply with the specification.
Component damage.
Failure to comply with the specification.
Component damage.
- All specifications must be observed and complied with.
- When lowering the front subframe, ensure sufficient distance between the steering gear (1) and the output shaft (2).

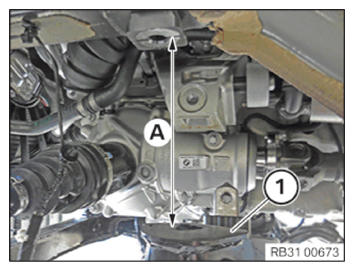

- Lower the front subframe (1) with the universal jack by dimension (A).
Dimensions (A) = maximum 15 cm
