Detach steering shaft at bottom from steering gear

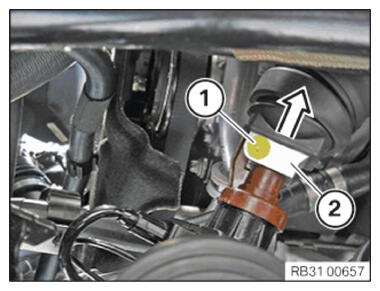

Loosen screw (1).
Detach the steering shaft below (2) from the steering gear in the arrow direction.

G16026829

Courtesy of BMW OF NORTH AMERICA, INC.
