Releasing the EPS wiring harness from the electromechanical steering gear

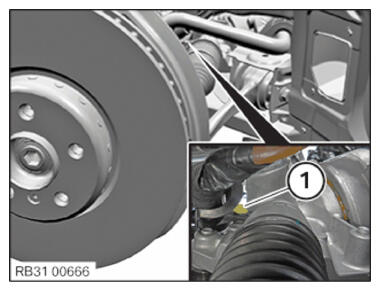

• Loosen screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

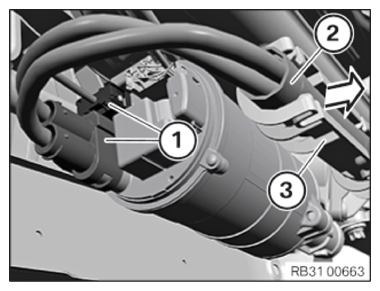

• Manually unlock plug connection (1) and disconnect.
• Manually unclip the wiring harness (2) from the holder (3) in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

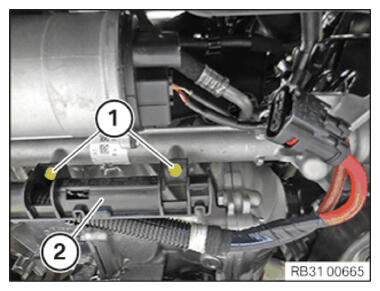

• Loosen screws (1).
• Suspend the holder (2) with the wiring harness to the side.

Courtesy of BMW OF NORTH AMERICA, INC.
