Preparing the special tool
NOTE:
TECHNICAL INFORMATION
In a profile rail pair, two profile rails are connected to one another by gearing.
In a profile rail pair, two profile rails are connected to one another by gearing.

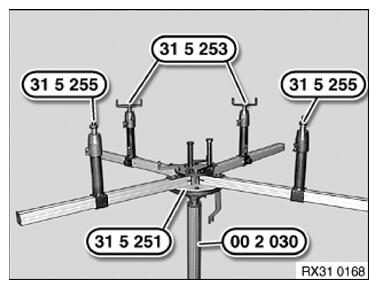

- Position the special tool fully on special tool 0 490 133 (00 2 030) with the help of a support person.
- Insert special tools 0 495 821 (31 5 255) in telescopic supports of a profile rail pair.
- Insert special tools 0 495 819 (31 5 253) in telescopic supports of other profile rail pair.
