Supporting the front axle support
NOTE:
TECHNICAL INFORMATION
The center of gravity of the axle support must be in the center above the special tool.
The center of gravity of the axle support must be in the center above the special tool.

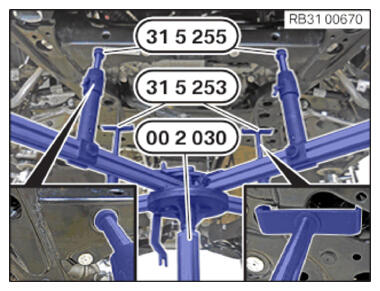

- Position the special tool 0 490 133 (00 2 030) on the front subframe with the special tools 0 495 821 (31 5 255) and 0 495 819 (31 5 253) .
- Support the front subframe with the special tool 0 490 133 (00 2 030) .
