Detach the anti-roll bar link from the anti-roll bar on the right and left
Detach the anti-roll bar link from the anti-roll bar on the right and left
NOTE:
Perform the steps on the right and left side.

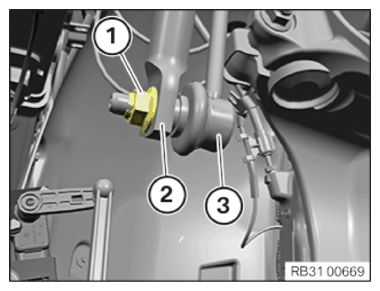

Loosening the anti-roll bar link from the anti-roll bar
Loosen nut (1).
NOTE:
Counter-hold at the Torx socket.
Loosen the anti-roll bar link (3) from the anti-roll bar (2).
Courtesy of BMW OF NORTH AMERICA, INC.
