Detach the line connection of the ride height sensor
NOTE:
The following step(s) must be performed if the specified component(s) is/are installed.

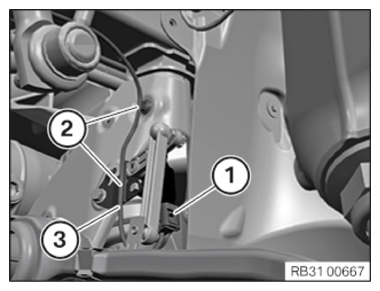

- Unlock plug connection (1) and disconnect.
- Unclip the holder (2) with the line (3).
