Installing front heat shield

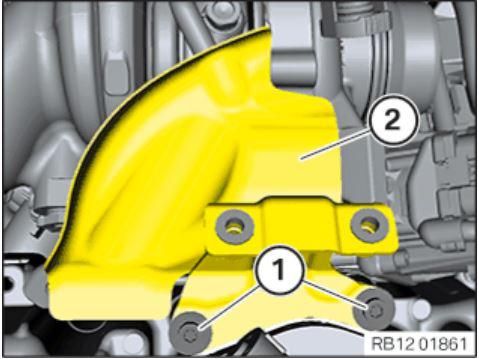

- Position the heat shield (2) .
- Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Heat protection plate M6x12 screw
Replace screw.tightening torque 10 Nm - Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Heat protection plate | ||
|---|---|---|
| M6x12 screw Replace screw. |
tightening torque | 10 Nm |
Follow-up work
- Refer to INSTALLING LEFT AND RIGHT EXHAUST TURBOCHARGERS .
- Mounting fixture on the right.
- Position fixture for the right (2).
- Tightening the screws (1).
Tightening torquesMount M6x16 Tightening torque 8 Nm - Refer to INSTALLING LEFT MOUNT .
- Refer to INSTALLING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
- Refer to INSTALLING CLEAN AIR PIPE OF CYLINDER BANK 1 .
- Refer to INSTALLING CATALYTIC CONVERTER NEAR THE ENGINE ABOVE CYLINDER BANK 1 .
- Refer to INSTALLING UPPER CATALYTIC CONVERTER NEAR ENGINE FOR BANK 2 .
- Refer to INSTALLING HEAT SHIELD, TOP .
- Installing conduit on bank 2
- Clip the wiring harness (2) into the clamps (1).
- Refer to INSTALLING ENGINE VENTILATION LINE OF CYLINDER BANK 1 .
- Refer to INSTALLING THE HOLDER WITH THE VEHICLE WIRING HARNESS FOR THE SENSOR SYSTEM OF CYLINDER BANK 1 .
- Refer to INSTALLING THE TANK VENTILATION LINE OF CYLINDER BANK 1 PARTIALLY .
- Installing cable duct at cylinder bank 1.
- Position the conduit (2).
- Tighten the screws (1).
TIGHTENING TORQUESCable duct M6x16 screw Tightening torque 10Nm - Refer to INSTALLING THE OXYGEN SENSOR MONITOR OF CYLINDER BANK 1 .
- Refer to INSTALLING THE OXYGEN SENSOR MONITOR OF CYLINDER BANK 2 .
- Refer to CHECKING THE POSITION OF THE HEAT SHIELD .
- Refer to INSTALLING THE EXPANSION TANK FOR THE CHARGE AIR COOLER .
- Refer to INSTALLING COOLANT EXPANSION TANK .
- Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 5 TO 8 .
- Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 1 TO 4 .
- Refer to INSTALLING ALTERNATOR .
- Refer to INSTALLING THE CHARGE AIR COOLER ON THE LEFT AND RIGHT .
- Refer to CLOSING THE COOLANT PUMPS .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to INSTALLING DRIVE BELT .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE FRONT RIGHT WHEEL .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to TIGHTENING THE LEFT FRONT-END STRUT .
- Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Installing the rear right engine compartment cover.
Remove the battery cover .
NOTE: The following step(s) must be performed if the listed component(s) is/are installed.- Remove the special tool 2 452 007 from the battery.
- Install the cover (2).
- Lock the lock (1).
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
- Refer to INSTALLING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to CHECKING ENGINE OIL LEVEL .
