Install the holder with the vehicle wiring harness for the sensor system of cylinder bank 1

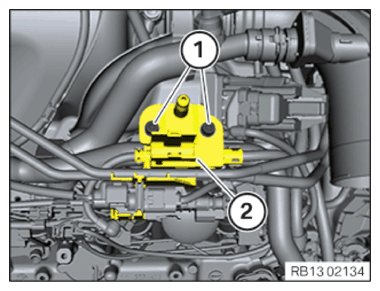

• Position the holder (2)  with the wiring harness for the sensor system.
• Tighten the screws (1)  .

TIGHTENING TORQUES SPECIFICATION

Holder of sensor system
M6x16 screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
