Installing the charge air cooler on the left and right
- Feed in the charge air cooler (2) at the bottom and position.
- Replace hose with clamps (2).
Parts: Hose, clamps
- Tighten hose clamp (1).
TIGHTENING TORQUES SPECIFICATION
| hose | ||
| hose | Tightening torque | 3.5 Nm |
- Connect hose (2).
Retaining clip (1) must engage audibly.
- Engage the holder (2) on the charge air cooler.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Charge air cooler top | ||
| M6x30 screw | Tightening torque | 10 Nm |
- Connect the line (1) and lock.
- Position holder (3).
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Charge air cooler bottom | ||
| M6x18 screw | Tightening torque | 10 Nm |
- Replace the hose.
Parts: Hose
- Tighten the hose clamp (1).
TIGHTENING TORQUES SPECIFICATION
| hose | ||
| hose | Tightening torque | 3.5 Nm |
- Slide the hose (2) onto the stud of the charge air cooler.
- Replace hose clamp with hose.
Parts: Hose clamps and hose
- Tighten the hose clamp (3).
- Thread in the hose (1) in the holder on the charge air cooler (4).
- Slide the hose (2) onto the stud of the charge air cooler.
- Replace hose clamp with hose.
Parts: Hose clamps and hose
- Tighten the hose clamp (3).
- Thread in the hose (1) in the holder on the charge air cooler (4).
- Attach the coolant lines (2).
- Retaining clip (1) must engage audibly.
- Position the cable in the cable bracket (2) and lock.
- Connect connectors (1) and lock.
- Feed in the charge air cooler (1) at the bottom and position.
- Replace the hose and clamps (1).
Parts: Hose, clamps
- Tighten the hose clamps (1) on the charge air cooler (2).
TIGHTENING TORQUES SPECIFICATION
| hose | ||
| hose | Tightening torque | 3.5 Nm |
- Position the connecting plate of the charge air cooler (2).
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Connecting plate of charge air cooler | ||
| screw | Tightening torque | 6.5 Nm |
- Connect connectors (2) and lock.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Charge air cooler top | ||
| M6x30 screw | Tightening torque | 10 Nm |
- Snap line (1) into holder (2).
- Position the centering pin on holder (1) downwards in lug (2) on the charge air cooler.
- Engage the holder (1) on the charge air cooler.
- Position the line.
Risk of breakage.
- Connect connectors (2) and lock.
- Connect the line (1) and lock.
- Connect hose (2).
Retaining clip (1) must snap in audibly.
- Connect the line (1) and lock.
- Position holder (3).
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Charge air cooler bottom | ||
| M6x18 screw | Tightening torque | 10 Nm |
- Replace the hose.
Parts: Hose
- Tighten the hose clamp (1).
TIGHTENING TORQUES SPECIFICATION
| hose | ||
| hose | Tightening torque | 3.5 Nm |
- Slide the hose (2) onto the stud of the charge air cooler.
- Replace hose clamp with hose.
Parts: Hose clamps and hose
- Tighten the hose clamp (3).
- Thread in the hose (1) in the holder on the charge air cooler (4).
- Slide the hose (2) onto the stud of the charge air cooler.
- Replace hose clamp with hose.
Parts: Hose clamps and hose
- Tighten the hose clamp (3).
- Thread in the hose (1) in the holder on the charge air cooler (4).
- Attach the coolant lines (2).
- Retaining clip (1) must engage audibly.
Installing oil filler neck
- Replace the sealing ring (2) on the oil filler neck (1).
Parts: Sealing ring
- Coat the sealing ring (2) with the recommended engine oil.
Engine oil
Technically suitable engine oils for BMW Group engines
- Position oil filler neck (1).

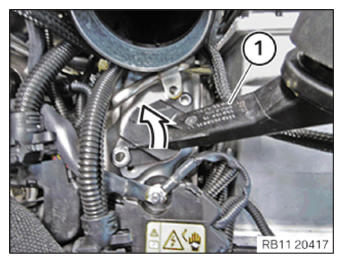

- Turn oil filler neck (1) about 15° counterclockwise.
- Tighten screw (2) on the oil filler neck (3).
TIGHTENING TORQUES SPECIFICATION
| Oil filler neck | ||
| M6x30 | tightening torque | 10 Nm |
- Tighten screw (1) on the oil filler neck (3).
TIGHTENING TORQUES SPECIFICATION
| Oil filler neck | ||
| M6x30 | tightening torque | 10 Nm |
Follow-up work
- Refer to CLOSING THE COOLANT PUMPS .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to TIGHTENING THE LEFT FRONT-END STRUT .
- Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Installing the cover panel of the master DME control unit.
- Position the cover of the master DME control unit (1)
- Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
