Replacing the right oil separator
- Loosen screws (1) .
- Remove liquid-vapor separator (2) .
- Replace the oil separator (2)
.
Parts: Liquid-vapor separator
- Position the liquid-vapor separator (2) .
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Oil separator to cylinder head cover | ||
|---|---|---|
| M6 screw | tightening torque | 10 Nm |

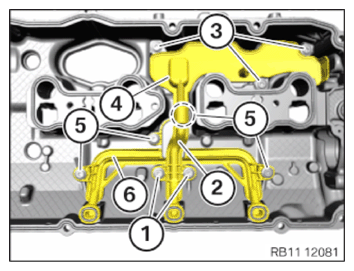

Replacing the right oil separator (equipment specification with intake pipe)
- Loosen screws (1) .
- Feed out and remove the oil separator section (2) .
- Loosen screws (3) .
- Feed out and remove the oil separator section (4) .
- Loosen screws (5) .
- Remove the oil separator section (6) .
- Replace oil separator.
Parts: Liquid-vapor separator
- Position the oil separator section (6) .
- Tighten down screws (5) .
TIGHTENING TORQUE SPECIFICATIONS
| Oil separator to cylinder head cover | ||
|---|---|---|
| M6 screw | tightening torque | 10 Nm |
- Position the oil separator section (4) .
- Tighten down screws (3) .
TIGHTENING TORQUE SPECIFICATIONS
| Oil separator to cylinder head cover | ||
|---|---|---|
| M6 screw | tightening torque | 10 Nm |
- Insert and install the oil separator section (2) .
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Oil separator to cylinder head cover | ||
|---|---|---|
| M6 screw | tightening torque | 10 Nm |
Follow-up work
- Refer to INSTALLING THE LEFT CYLINDER HEAD COVER .
- Refer to INSTALLING THE CYLINDER HEAD COVER ON THE RIGHT .
- Refer to INSTALLING FUEL DELIVERY LINE .
- Refer to INSTALLING HOLDER WITH THE WIRING HARNESS FOR THE SENSOR SYSTEM OF CYLINDER BANK 2 .
- Refer to INSTALLING THE HOLDER WITH THE VEHICLE WIRING HARNESS FOR THE SENSOR SYSTEM OF CYLINDER BANK 1 .
- Refer to INSTALLING THE LEFT THROTTLE BODY .
- Refer to INSTALLING THE INTAKE PIPE .
- Refer to INSTALLING THE LEFT-HAND CHARGE AIR COOLER .
- Refer to INSTALLING THE RIGHT-HAND CHARGE AIR COOLER .
- Refer to INSTALLING OIL FILLER NECK .
- Refer to CLOSING THE COOLANT PUMPS .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING DRIVE BELT .
- Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to TIGHTENING THE LEFT FRONT-END STRUT .
- Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to INSTALLING CATALYTIC CONVERTER NEAR THE ENGINE ABOVE CYLINDER BANK 1 .
- Refer to INSTALLING UPPER CATALYTIC CONVERTER NEAR ENGINE FOR BANK 2 .
- Refer to INSTALLING HEAT SHIELD, TOP .
- Installing cable duct at cylinder bank 1.
- Position the conduit (2).
- Tighten the screws (1).
TIGHTENING TORQUESCable duct M6x16 screw Tightening torque 10Nm - Installing conduit on bank 2.
- Clip the wiring harness (2) into the clamps (1).
- Refer to INSTALLING ENGINE VENTILATION LINE OF CYLINDER BANK 1 .
- Refer to INSTALLING THE TANK VENTILATION LINE OF CYLINDER BANK 1 PARTIALLY .
- Installing cable duct at cylinder bank 1.
- Position the conduit (2).
- Tighten the screws (1).
TIGHTENING TORQUESCable duct M6x16 screw Tightening torque 10Nm - Refer to INSTALLING THE ENGINE VENTILATION LINE OF CYLINDER BANK 2 .
- Refer to INSTALLING THE OXYGEN SENSOR MONITOR OF CYLINDER BANK 2 .
- Refer to CHECKING THE POSITION OF THE HEAT SHIELD .
- Refer to INSTALLING THE EXPANSION TANK FOR THE CHARGE AIR COOLER .
- Refer to INSTALLING COOLANT EXPANSION TANK .
- Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 5 TO 8 .
- Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 1 TO 4 .
- Refer to INSTALLING THE LEFT HIGH PRESSURE PUMP .
- Refer to INSTALLING RIGHT HIGH PRESSURE PUMP .
- Refer to INSTALLING THE HOLDER WITH THE VEHICLE WIRING HARNESS FOR THE SENSOR SYSTEM OF CYLINDER BANK 1 .
- Refer to INSTALLING THE HOLDER WITH THE VEHICLE WIRING HARNESS FOR THE SENSOR SYSTEM OF CYLINDER BANK 1 .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING INJECTORS .
- Refer to ATTACHING CONNECTOR OF THE INJECTORS OF CYLINDER BANK 1 .
- Refer to CONNECTING THE CONNECTOR OF THE INJECTORS OF CYLINDER BANK 2 .
- Refer to INSTALLING RAIL OF CYLINDER BANK 1 .
- Refer to INSTALLING RAIL ON BANK 2 .
- Refer to INSTALLING IGNITION COILS OF CYLINDER BANK 1 .
- Refer to INSTALLING CONTROL UNIT HOLDER FOR CYLINDERS 1 TO 4 .
- Refer to INSTALLING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to EVACUATING AND CHARGING CONDITIONING .
