Installing the charge air duct
- Check the seal (1) for damage and replace if necessary
Replacing the damaged seal
NOTE:
TECHNICAL INFORMATION
Use of sharp or pointy tools for installation or removal is prohibited
Use of sharp or pointy tools for installation or removal is prohibited
- Remove damaged seal
- Clean the gasket groove (1) with a dry cloth
The gasket groove (1) must be clean
- Replace gasket
Parts: Gasket
- Install the seal dry without lubricant or mounting agentNOTE: TECHNICAL INFORMATION
Incorrect assembly is possible. Ensure correct installation position - Thread in seal and install
- Make sure that the seal is installed correctly in the gasket groove (1)
- Make sure that the sealing lip (2) is directed to the inside as shown

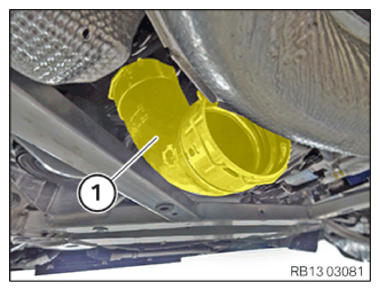

- Feed in charge air duct (1) and install it

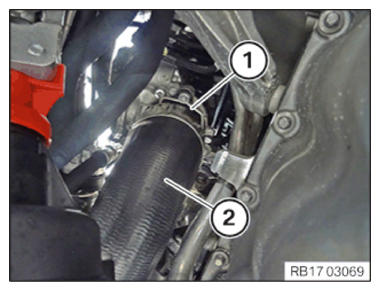

- Lock clamp (1)
- Connect and lock charge air hose (2)
The clamp (1) must engage audibly
Follow-up work
- Refer to INSTALLING THE CHARGE AIR LINE .
- Refer to INSTALLING THE CHARGE AIR DUCT FOR CYLINDERS 4-6 .
- Refer to INSTALLING THE CHARGE AIR DUCT FOR 1-3 CYLINDERS .
- Refer to INSTALLING FAN COWL .
- Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
- Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to INSTALLING THE INTAKE FILTER HOUSING ON THE LEFT (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
