Installing the charge air duct for 1-3 cylinders

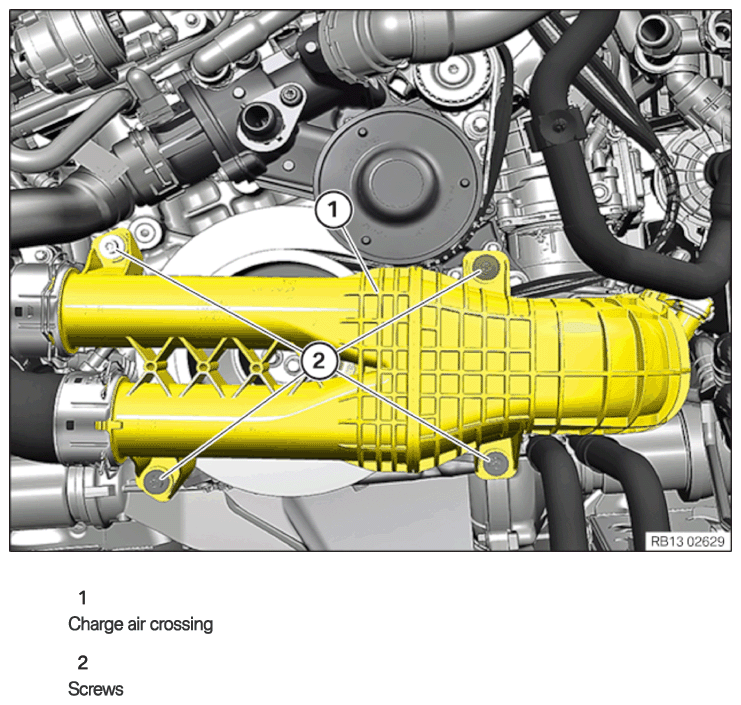

Charge air crossing

Courtesy of BMW OF NORTH AMERICA, INC.

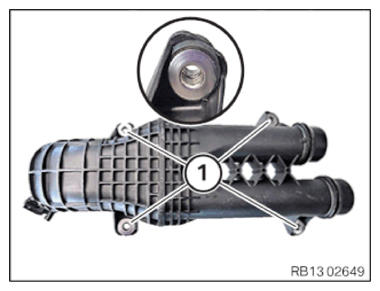

• Make sure that the guide sleeves (1) are available and have been installed correctly

  Courtesy of BMW OF NORTH AMERICA, INC.

• Make sure that the guide sleeves (1) are available and have been installed correctly

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the seal (1) for damage, replace if necessary

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the damaged seal

• Remove damaged seal
• Clean the gasket groove (1) with a dry cloth

  The gasket groove (1) must be clean

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace gasket

  Parts:  Gasket

• Install the seal dry without lubricant or mounting agent

• Thread in seal and install
• Make sure that the seal is installed correctly in the gasket groove (1)
• Make sure that the sealing lip (2) is directed to the inside as shown

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lock clamp (1)

Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the charge air duct for 1-3 cylinders (2) and install it
• Make sure that the clamps (1) engage audibly

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the charge air crossing (2) and position it
• Tighten the screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FAN COWL .
• Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
• Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
• Refer to INSTALLING THE FRONT-END STRUT .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT SPOILER .
