Install charge air pipe cylinders 4 to 6

• Check seal (1) for damage, replace if necessary

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the damaged seal

• Remove damaged seal
• Clean the gasket groove (1) with a dry cloth

  The gasket groove (1) must be clean

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace gasket

Parts:  Gasket

• Install the seal dry without lubricant or mounting agent
  NOTE: TECHNICAL INFORMATION
  Incorrect assembly is possible. Ensure correct installation position
• Thread in seal and install
• Make sure that the seal is installed correctly in the gasket groove (1)
• Make sure that the sealing lip (2) is directed to the inside as shown

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lock clamp (1)

  Courtesy of BMW OF NORTH AMERICA, INC.

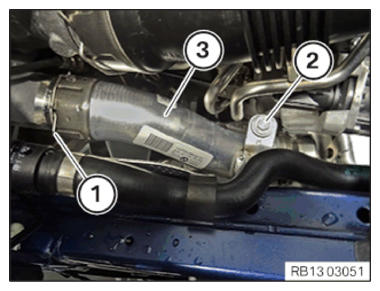

• Guide in and install the charge air pipe of cylinders 4 to 6 (3)
• Ensure that clamps (1) engage audibly
• Tighten down screw (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CHARGE AIR DUCT FOR CYLINDERS 4-6 .
• Refer to INSTALLING THE CHARGE AIR DUCT FOR 1-3 CYLINDERS .
• Refer to INSTALLING FAN COWL .
• Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
• Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
• Refer to INSTALLING THE FRONT-END STRUT .
• Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT SPOILER .
