Installing the two catalytic converters

Replace V-ribbon clips (1)
Parts: V-ribbon clips

Courtesy of BMW OF NORTH AMERICA, INC.
Replace gasket (1)
Parts: Seal

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and install catalytic converter (2)
Turn V-ribbon clip (1) until hand-tight

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the Lambda oxygen sensor for the cylinders 1 to 3

NOTE: TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease
For ADDITIONAL INFORMATION see: 11 00... Overview of consumables in applicable BMW parts catalogue

Prepare the oxygen sensor
Do not damage the sensor ceramics
1. Thread
2. Sensor ceramics

Lightly and evenly grease the thread (1) of the oxygen sensor monitor

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE DESCRIPTION

Brake block paste * TU = Trade Unit. TU numbers cannot be ordered! For invoicing purposes only	3 g, Bag	83192158851
	100 g, Tube	83192158852
	5 g, TU*	83230140233

Screw in the Lambda oxygen sensor (1) for the cylinders 1 to 3 with a special tool 0 491 074 (11 7 020) and hand-tighten it

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the Lambda oxygen sensor (1) for the cylinders 1 to 3 with a special tool 0 491 074 (11 7 020).

TIGHTENING TORQUE SPECIFICATIONS

Lambda oxygen sensor on catalytic converter
M18X1.5	tightening torque	50 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

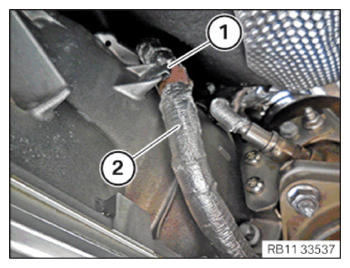

Fasten cable (1) in clamps (arrows)

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and (2) lock
The connector (1) must engage audibly
Guide in and install connectors (1) and (2) on carrier plate (3) in the arrow direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the catalytic converter (cylinders 4 to 6)

Replace V-ribbon clips (1)
Parts: V-ribbon clips

Courtesy of BMW OF NORTH AMERICA, INC.
Replace gasket (1)
Parts: Seal

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and install catalytic converter (1)
Tighten the V-ribbon clip (2) hand-tight

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed
Version A:
Insert and install the holder (4)

Tighten the screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Transmission to engine
M8	Tightening torque	19 Nm
M12	Tightening torque	66 Nm

Replace the screw (2)
Parts: Screw

Tighten down screw (2)

TIGHTENING TORQUE SPECIFICATIONS

Catalytic converter to holder
M8 Replace screw	Tightening torque	19 Nm

Tighten nut (3)

TIGHTENING TORQUE SPECIFICATIONS

Catalytic converter to holder
M8	Tightening torque	24 Nm

Version B:

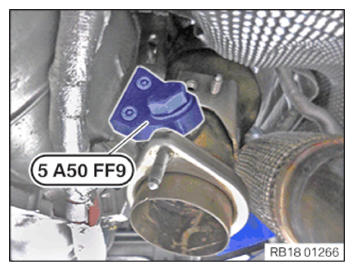

Use special tool 5 A50 FF9 to align and fix the catalytic converter

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (arrows)

TIGHTENING TORQUE SPECIFICATIONS

special tool for catalytic converter
M8 screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

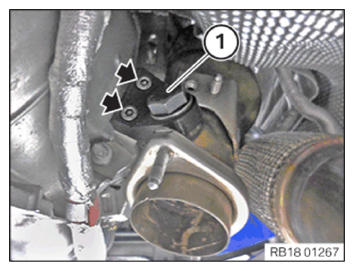

Align the catalytic converter correctly and tighten the screw (1)

TIGHTENING TORQUE SPECIFICATIONS

special tool for catalytic converter 2
M18 screw	Tightening torque	25 Nm

Tighten the catalytic converter (1) with the Vribbon clip (2)

TIGHTENING TORQUE SPECIFICATIONS

Catalytic converter to exhaust turbocharger
cl Replace clamp after disassembly	Tightening torque	14 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screw (1)
Remove screws (arrows)

Courtesy of BMW OF NORTH AMERICA, INC.
Remove special tool 5 A50 FF9

Courtesy of BMW OF NORTH AMERICA, INC.
Install holder (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the oxygen sensor monitor for cylinders 4 to 6

Prepare the oxygen sensor
The sensor ceramics must not be damaged
1. Thread
2. Sensor ceramics

Lightly and evenly grease the thread (1) of the oxygen sensor monitor

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE DESCRIPTION

Brake block paste * TU = Trade Unit. TU numbers cannot be ordered! For invoicing purposes only	3 g, Bag	83192158851
	100 g, Tube	83192158852
	5 g, TU*	83230140233

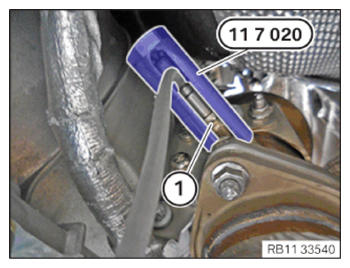

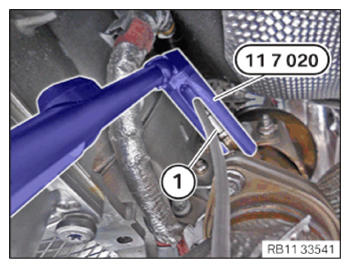

Screw in the oxygen sensor monitor (1) for cylinders 4 to 6 using the special tool 0 491 074 (11 7 020) and hand-tighten (apply) it

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten (apply) the oxygen sensor monitor (1) for cylinders 4 to 6 using the special tool 0 491 074 (11 7 020).

TIGHTENING TORQUE SPECIFICATIONS

Oxygen sensor monitor on catalytic converter
M18X1.5	tightening torque	50 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

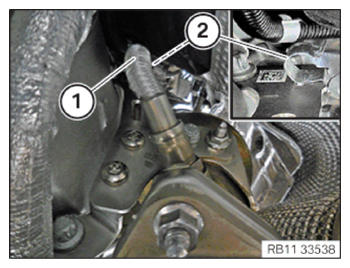

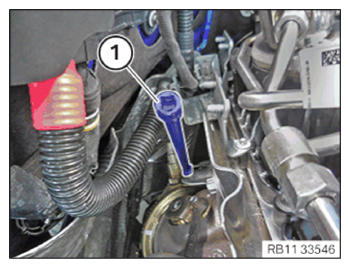

Secure positive battery cable (2) at the clamp (1)

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in heat shield (2) in the arrow direction and install
Replace the cable ties (1)
Parts: Cable tie
Feed in and install the cable tie (1)

Courtesy of BMW OF NORTH AMERICA, INC.

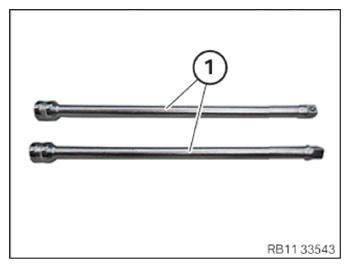

Keep the commercially available tools ready

Number	Description
1	3/8 extension

Courtesy of BMW OF NORTH AMERICA, INC.

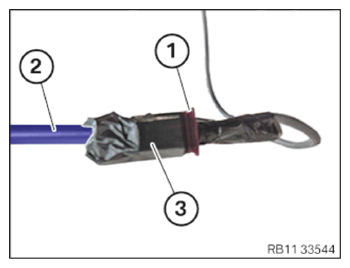

Connect the connector (1) with the masking tape (3) to the commercially available tool (2)

Courtesy of BMW OF NORTH AMERICA, INC.

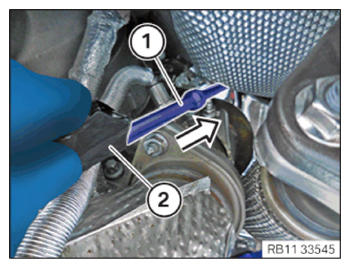

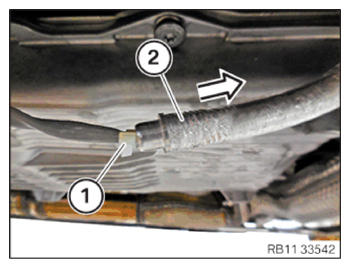

Guide in the commercially available tool (1) with the connector (2) in the arrow direction upwards and position it

Courtesy of BMW OF NORTH AMERICA, INC.
Thread out the commercially available (1) tool and place it to the side

Courtesy of BMW OF NORTH AMERICA, INC.
Release the masking tape (1) from the connector (2) and the commercially available tool (3)

Courtesy of BMW OF NORTH AMERICA, INC.

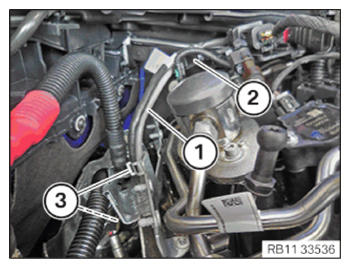

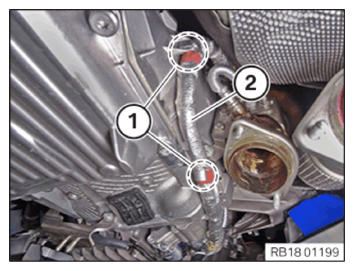

Attach the cable (1) to the clamps (3)
Guide in and install cable (1) on cable duct (2)

Courtesy of BMW OF NORTH AMERICA, INC.

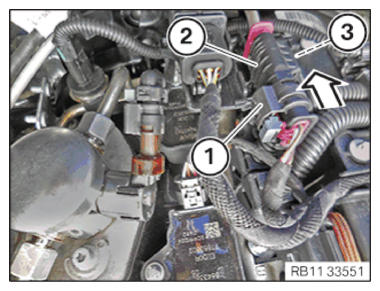

Connect and lock connectors (1) and (2)
The connector (1) must engage audibly
Guide in the connector (1) and (2) into the carrier plate (3) in the arrow direction and install it
The connectors (1) and (2) must engage audibly at the carrier plate

Courtesy of BMW OF NORTH AMERICA, INC.
Fasten the heat shield (1) in the clamp (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Clip the cables (2) into the holders (1)

Courtesy of BMW OF NORTH AMERICA, INC.

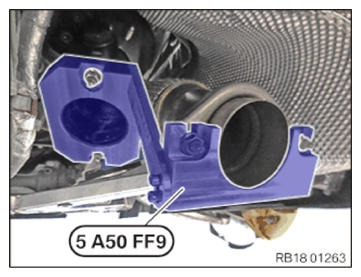

Use special tool 5 A50 FF9 to align and fix the catalytic converter

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the nuts (arrows)

TIGHTENING TORQUE SPECIFICATIONS

special tool for catalytic converter 3
Nut	Tightening torque	12 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure that the catalytic converter lies flush with the mark (1)

Tighten the nuts (arrows)

TIGHTENING TORQUE SPECIFICATIONS

special tool for catalytic converter 3
Nut	Tightening torque	12 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

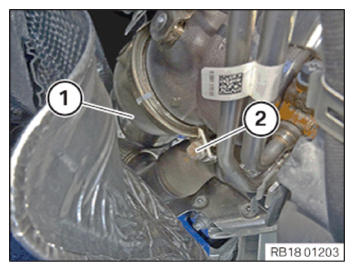

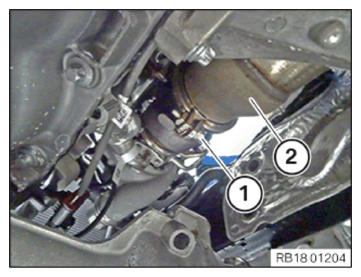

Tighten the catalytic converter (2) with the V-ribbon clip (1)

TIGHTENING TORQUE SPECIFICATIONS

Catalytic converter to exhaust turbocharger
cl Replace clamp after disassembly	Tightening torque	14 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

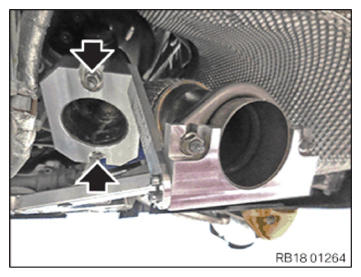

Unscrew the nuts (arrows)

Courtesy of BMW OF NORTH AMERICA, INC.
Unscrew the nuts (arrows)

Courtesy of BMW OF NORTH AMERICA, INC.
Remove special tool 5 A50 FF9

Courtesy of BMW OF NORTH AMERICA, INC.

Install the intermediate pipe

NOTE: TECHNICAL INFORMATION
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold

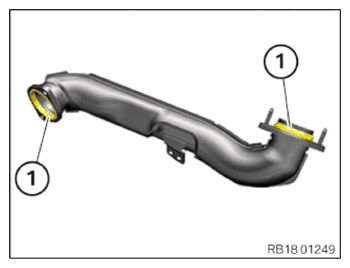

Replace the seals (1)
Parts: Seals

Courtesy of BMW OF NORTH AMERICA, INC.

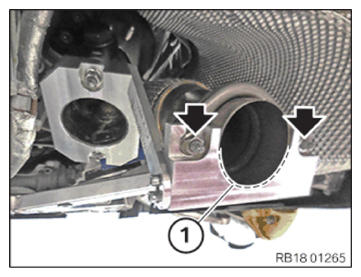

Feed in the intermediate pipe (1) and install it

Tighten the nuts (arrows)

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to intermediate pipe on catalytic converter
Nuts M8	1. Tightening torque	5 Nm
	2. Tightening torque	24 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

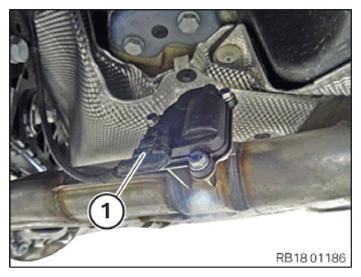

Version A:

Replace the screw (1)

Parts: Screw

Tighten down screw (1)

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system on the transmission cross member
M8x25 Replace screw	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the screw (1)
Parts: Screw

Tighten down screw (1)

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system on the transmission cross member
M8x25 Replace screw	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

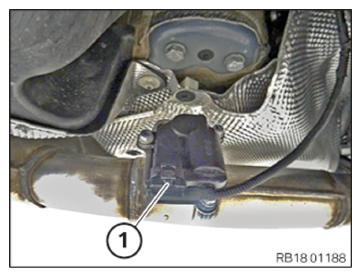

Version B:

Replace the screw (1)

Parts: Screw

Tighten down screw (1)

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system on the transmission cross member
M8x25 Replace screw	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1)

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to holder
Nut M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Install exhaust system

CAUTION: Component with heavy weight
Injury hazard!

Note component's center of gravity
Support component using a jack
Secure component against falling off the jack

CAUTION: Heavy component
Heavy components can lead to injury or damage

Remove and install heavy components with the aid of another person/other persons

NOTE: TECHNICAL INFORMATION
Check the exhaust system for tightness after installation

NOTE: TECHNICAL INFORMATION
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details

Check all rubber mounts (1) of the exhaust system for damage and replace, if necessary

Courtesy of BMW OF NORTH AMERICA, INC.
Replace seals (arrows)
Parts: Seals

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person

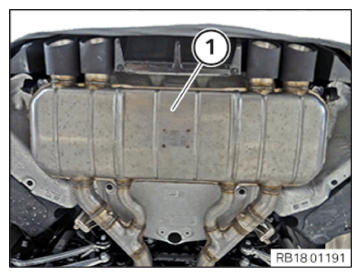

Insert and install the exhaust system (1) with the help of a support person

Courtesy of BMW OF NORTH AMERICA, INC.

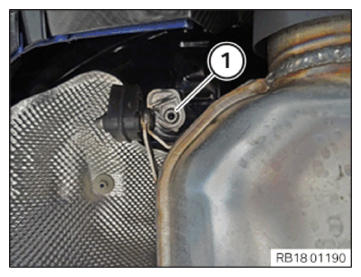

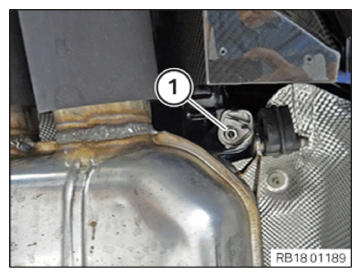

Tighten nut (1)

TIGHTENING TORQUE SPECIFICATIONS

Rear silencer to bumper bracket
M8	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1)

TIGHTENING TORQUE SPECIFICATIONS

Rear silencer to bumper bracket
M8	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

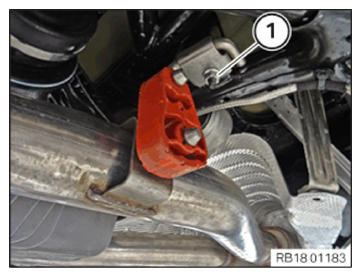

Tighten nut (1)

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to rear axle carrier
M8 Nut	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1)

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to rear axle carrier
M8 Nut	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version A:
Replace the screw (1)

Parts: Screw

Tighten down screw (1)

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system on the transmission cross member
M8x25 Replace screw	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the screw (1)
Parts: Screw

Tighten down screw (1)

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system on the transmission cross member
M8x25 Replace screw	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:
Replace the screw (1)

Parts: Screw

Tighten down screw (1)

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system on the transmission cross member
M8x25 Replace screw	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

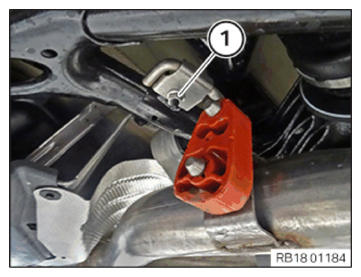

Tighten nut (1)

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to holder
Nut M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nuts (1)

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to catalytic converters/intermediate pipe
M8 Replace nut	1. Tightening torque	5 Nm
	2. Tightening torque	24 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nuts (1)

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to catalytic converters/intermediate pipe
M8 Replace nut	1. Tightening torque	5 Nm
	2. Tightening torque	24 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed

If necessary, coat the thread of the union nut with assembly paste
CONSUMABLE DESCRIPTION

High-temperature assembly paste 10 g, Tube 83230309003

Tighten union nuts (1)

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Pressure line union nut
Pressure line union nut	Tightening torque	40 Nm

Connect connectors (1) and lock

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 4 TO 6 .
Refer to INSTALLING THE OXYGEN SENSOR MONITOR FOR CYLINDERS 1 TO 3 .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE FRONT SPOILER .
Refer to INSTALLING THE HOLDER OF THE POSITIVE BATTERY CABLE .
Refer to PARTIALLY INSTALLING THE COOLANT EXPANSION TANK OF THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE FRONT-END STRUT .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE STRUT BRACE .
Refer to INSTALLING THE FRONT HOOD SEAL .
Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
