(Partially installing the coolant expansion tank of the high-temperature coolant circuit)

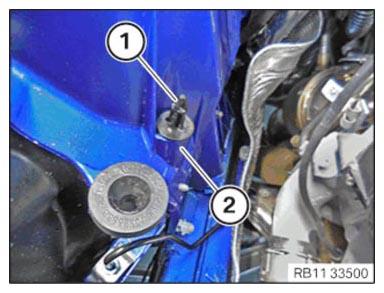

Check the expanding pin (1) at the shock tower (2) for damage and if necessary, replace the expanding pin (1)

Courtesy of BMW OF NORTH AMERICA, INC.

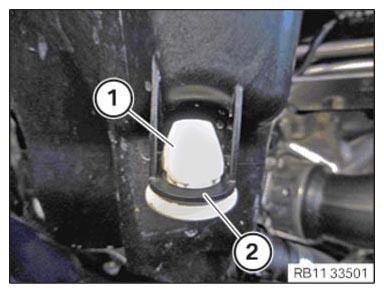

Check the rubber mount (1) for damage and replace if necessary
Check the rubber mount (1) for a correct fit on the expansion tank (2)

Courtesy of BMW OF NORTH AMERICA, INC.

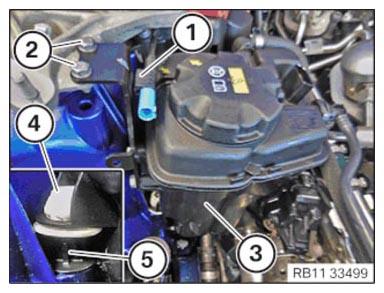

Feed in and install the coolant expansion tank (3)
The rubber mount (4) must engage audibly at the expanding pin (5)

Tighten the screws (2)

(TIGHTENING TORQUE SPECIFICATIONS)

Coolant expansion tank to strut brace ring
Hexagon screw M6x16	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
