Installing the rear rubber mount for the rear axle support

NOTE: Description is for left component only. Procedure on the right side is identical.

Preparing the rubber mount for installation

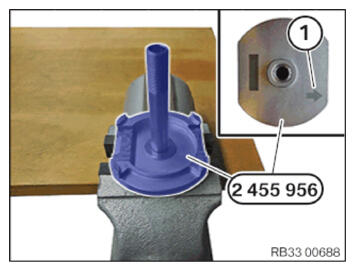

Clamp special tool 2 455 956 in vice.
Observe the arrow position (1) on the lower side of the special tool 2 455 956 .

Courtesy of BMW OF NORTH AMERICA, INC.

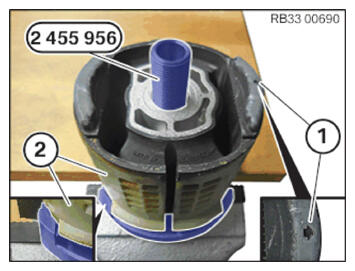

Correctly position the rubber mount (2) :
The arrow (1) must point in the same direction as the arrow on the special tool 2 455 956 .

Courtesy of BMW OF NORTH AMERICA, INC.

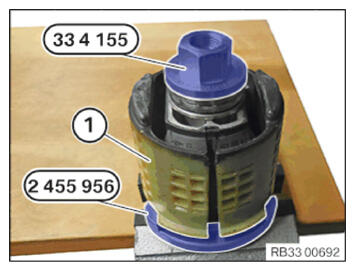

Tighten the rubber mount (1) on the special tool 2 455 956 with the special tool 0 492 412 (33 4 155) up to the stop .

Courtesy of BMW OF NORTH AMERICA, INC.

Alignment of the rear rubber mount on the rear axle support

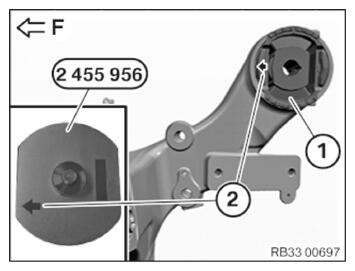

Align the rear rubber mount (1) in the direction of travel using the arrow on the special tool 2 455 956 and on the rubber mount (2) .
(F) = driving direction (view of the rear axle support from below)

Courtesy of BMW OF NORTH AMERICA, INC.

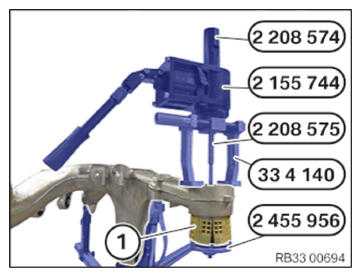

Pull the rubber mount (1) into the rear axle support using the special tools 2 455 956, 0 492 397 (33 4 140), 2 208 575, 2 155 744 and 2 208 574 .
Remove the special tools.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING COMPLETE REAR AXLE SUPPORT .
Refer to SECURING REAR AXLE .
Refer to SECURING REAR LEFT AND RIGHT SPRING STRUT SHOCK ABSORBERS ON THE WHEEL CARRIER .
Refer to REMOVING THE SPECIAL TOOL FROM THE REAR AXLE .
Refer to IF INSTALLED: CONNECTING THE CONNECTOR TO THE SERVOMOTOR OF THE REAR AXLE DIFFERENTIAL .
Refer to SECURING REAR LEFT AND RIGHT BRAKE CALIPER .
Refer to IF INSTALLED: SECURING CABLE .
Refer to IF INSTALLED: CONNECTING THE CABLE (ADDITIONAL WORK ON ACTIVE STABILIZER .
Refer to CONNECTING THE CONNECTORS ON LEFT AND RIGHT .
Refer to SECURING CABLES ON RIGHT AND LEFT .
Refer to CONNECTING THE CONNECTOR TO THE REAR RIDE HEIGHT SENSOR .
Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
Refer to INSTALLING THE HEAT SHIELD AT THE REAR .
Refer to INSTALLING EXHAUST SYSTEM .
Refer to INSTALLING CENTER STIFFENING PLATE .
Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
Refer to INSTALLING REAR PANEL .
Refer to PARTIALLY INSTALLING THE REAR LEFT AND RIGHT WHEEL ARCH COVERS .
Refer to INSTALLING BOTH EXHAUST COVERS .
Refer to INSTALLING BOTH SIDE REAR TRIM STRIPS .
Refer to INSTALLING THE REAR BUMPER TRIM .
Refer to INSTALLING THE REAR DIFFUSER .
Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
Refer to PLACING THE BRAKE PADS ON THE BRAKE DISK/PUTTING THEM INTO OPERATION .
Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
Refer to INSTALLING COVER FOR WATER CHANNEL ON LEFT AND RIGHT .
Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT (PARTIALLY REMOVED) .
Refer to INSTALLING BOTH LEDS IN THE CARGO AREA .
Refer to INSTALLING LOADING EDGE TRIM .
Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
