Installing both exhaust covers
NOTE:
Description is for left component only. Procedure on the right side is identical.

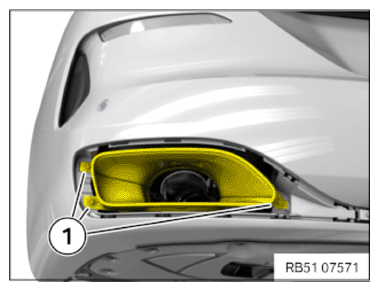

Install exhaust cover
- Position exhaust cover (2) and position centrally in the cutout of the bumper cover.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Exhaust system trim to rear bumper cover | ||
|---|---|---|
| Hexagon screw | tightening torque | 3 Nm |

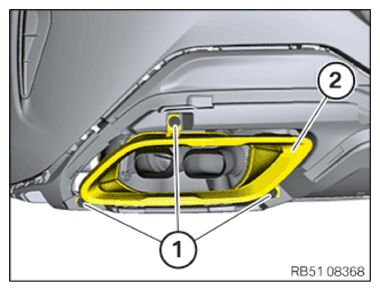

Install exhaust cover
- Mount the exhaust cover (2) and position centrally in the cutout of the bumper cover.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Exhaust system trim to rear bumper cover | ||
|---|---|---|
| Hexagon screw | tightening torque | 3 Nm |
