Install the cover of the camber control arm on the left and right

NOTE: Description is for left component only. Procedure on the right side is identical.

Install the cover of the camber control arm

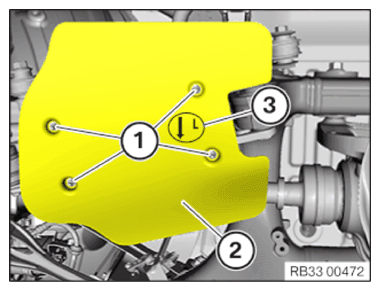

Correctly position the cover of the camber link (2) on the camber link. Note the direction of installation while doing so.
The arrow (3) must point in the driving direction.
Replace nuts (1).
Parts: Nuts

Tighten the screws or the nuts (1).

TIGHTENING TORQUE SPECIFICATIONS

Cover to camber control arm
M6 Replace nuts.	Tightening torque	6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
