Installing the tail light on the left and right side panels
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the tail light on the side panel
Check

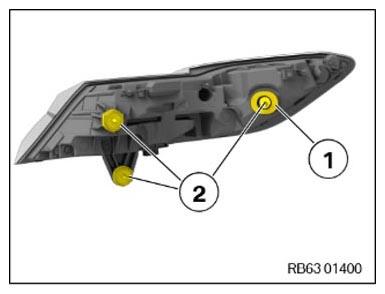

- Check the seal (1) for damage and replace if necessary.
- Check threaded inserts (2) for damage.
Result
» The threaded insert is damaged.
Measure
- Replace the rear light on the side panel.
Parts: Tail lamp

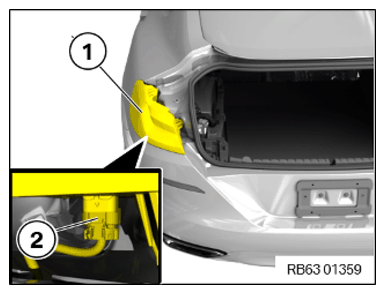

- Connect and lock connector (2) of tail light (1) on the side panel.

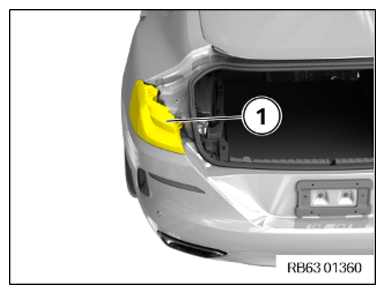

- Install tail light (1) on the side panel.
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.

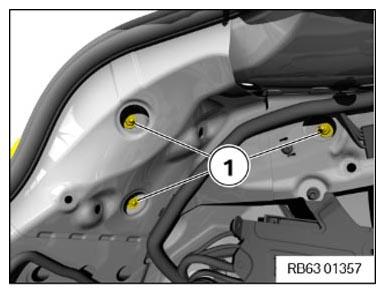

- Tighten nuts (1).
TIGHTENING TORQUE SPECIFICATIONS
| Side panel tail light to body | ||
|---|---|---|
| hexagon nut M5 | Tightening torque | 3 Nm |
